SPACE ASYMMETRICAL

Space with asymmetrical light distribution is an innovative solution maintaining the harmony and the perception of a round luminaire. Space is fully enlighted both with symmetrical and asymmetrical light distribution.

The high lighting comfort of Space remains the same, and in many applications, the asymmetrical distributions will result in energy savings compared to round-symmetrical.

More information in the Space publication here.

Specifications

SPACE ASYMMETRICAL

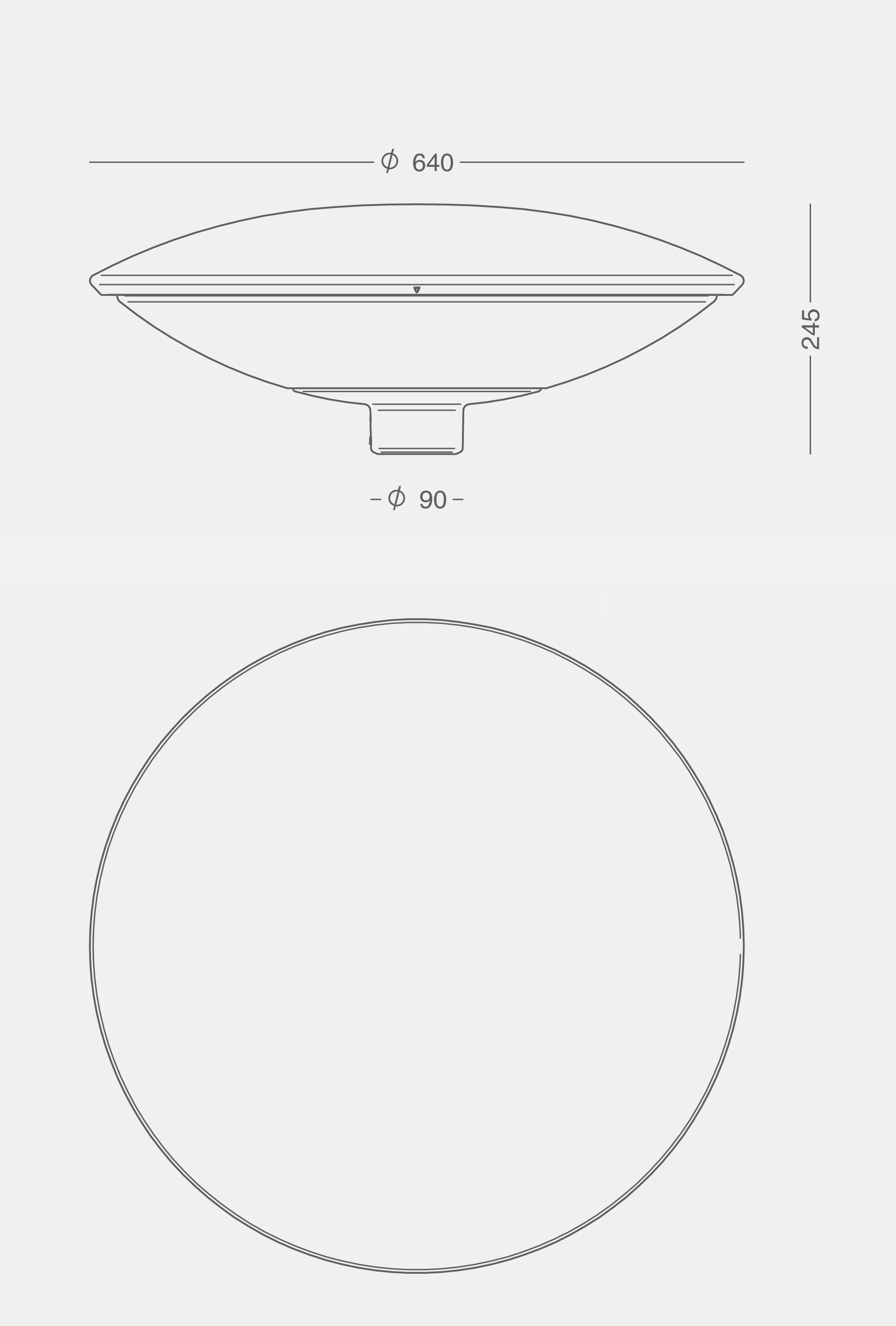

space_f0

Luminaire

SPACE
Material Cast aluminium
Powder coating Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade Clear long-life polycarbonate with UV resistant acrylate on both sides
Mounting Post top/pipe: Ø60 x H100 mm or Ø76 x H50 mm
5.5 m PKL lead, 2 x 1 mm2, is included
Connection In the post
Classification IP66, class II; use code for class I
Impact resistance IK10; with Zhaga socket IK09
Corrosion class C4
Weight 10 kg
Wind sweeping area 0.09 m2


LED High lumen

LED High lumen Bridgelux V22
Operational life min 100,000 hours at ta max 25° C, L90B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 80, typically 85 Ra
option for 90 Ra, 3000 K, with R9 = 72
OBS: longer lead times for Ra 90
Colour accuracy 3 steps SDCM
Luminous power, 80 Ra 2700K: 600-6050 lm, CLO
3000K: 650-6400 lm, CLO
4000K: 675-6600 lm, CLO
Luminous power, 90 Ra 3000K: 525-5200 lm, CLO
Luminous intensity class, 13201-2 2015 G*1
Glare index class D5
Output ratio Type IV: 74%
Type II: 68%


LED Low lumen

LED Low lumen Bridgelux V18
Operational life min 100,000 hours at ta max 25° C, L90B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 80, typically 85 Ra
option for 90 Ra, 3000 K, with R9 = 72
OBS: longer lead times for Ra 90
Colour accuracy 3 steps SDCM
Luminous power, 80 Ra 2700K: 315-3550 lm, CLO
3000K: 335-3800 lm, CLO
4000K: 345-3900 lm, CLO
Luminous power, 90 Ra 3000K: 275-3100 lm, CLO
Luminous intensity class, 13201-2 2015 G*1
Glare index class D6
Output ratio Type IV: 74%
Type II: 68%


Drivers

Driver, High lumen Xitanium Full Xi FP 40 W 0,3-1,0 A, programmable
Inrush current max 22 A (50% after 290 µs)

Driver, Low lumen Xitanium Full Xi FP 40 W 0,2-0,7 A, programmable
Inrush current max 27 A (50% after 265 µs)
Nominal voltage, AC 220-240 Vac
Operational input voltage, AC 198-264 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 165-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV, (SR driver: 8 kV)
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, phase, and voltage
DALI via Zhaga book 18 socket

Variants and options



Item No. Space asymmetrical type IV
8901- V18, Low lumen, programmable, max 25 W
8902- V22, High lumen, programmable, max 40 W

Item No. Space asymmetrical type II
8884- V18, Low lumen, programmable, max 25 W
8885- V22, High lumen, programmable, max 40 W

Optional
8016- Distance ring for Ø90 mm post - combine with colour code


Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
4 = graphite grey 827 = 2700 K, 80 Ra
9 = silver grey 830 = 3000 K, 80 Ra
17 = corten brown 840 = 4000 K, 80 Ra
66 = black noir 900 930 = 3000 K, 90 Ra

Mounting Dimming/control
empty = Ø60 mm pole empty = programmable
M76 = Ø76 mm pole D = Dali-2 (4-conductor cable)
F = phase
Z = voltage
R = Dali via Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class
empty = class II
J = class I


Example: 8902-9830J = Space asymmetrical type IV, High lumen, programmable, silver grey, 3000 K, 80 Ra, Ø60 post, class I

Media & downloads

space_wittstock_1166

At 4 meter posts, Space meets P4 with 27 meters between posts. At 5 meter, P4 is met with 32 meters between posts. In both cases a path width of 3 meters.

space_stockholm_1166

Space is 640 mm wide, and with light broadened out into the whole housing, the luminaire is powerful and elegant at high and low posts.

space_aarhusoe_1166

Due to the innovative combination of indirect, direct, and shaded light, the Space luminaire offers comfortable human lighting in a fine balance with highly efficient and uniform lighting distributions.

space_lillelangebro_1166

Space's graduated light is pleasant and lively. Space creates living spaces with atmosphere without disturbing the dark sky.

space_doll_mhl_1166

Space, graphite grey, 4 m pole, Zhaga sockets up/down, DOLL - Living Lab

delft_366_1166

Space at 60 mm Ø alu post. Test presentation in Delft, Netherlands.

tilburg_547a8863_1166

Space at 4 m aluminium poles in a large residential area in Tilburg, Holland

More photos from Tilburg
space_tilburg_547a8886_1166

Space at 4 m alu pole, with Zhaga socket on top, Tilburg, Holland

tilburg_547a8866_1166

Space at 4 m aluminium poles in a large residential area in Tilburg, Holland

More photos from Tilburg

DesignAART Designers

- Space has an appealing and easy understandable design language, based on simplicity and interaction between form and function. A central light source surrounded by circular elements creates a precise and harmonic composition. Transparent and calm by day, and at night - when the light is on - a wide warm and glowing scene of direct and indirect light framed by a translucent shielding. - Morten Hove Lasthein, AART Designers

Watch the video here

More on AART Designers here.

Read Morten Lasthein's article on the birth of Space here.
