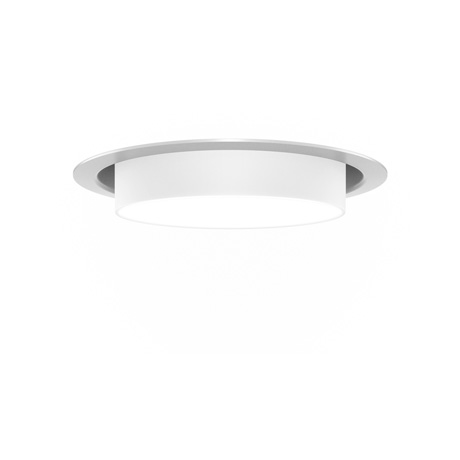

The Punkt Lamp 200 is the largest downlighter in the family of five and is used as the primary light source in large halls, shopping centres and similar premises.

The two larger Punkt Lamps can be equipped with an extra glass shade at the bottom.


Ø 200



Material Aluminium
Shade Mouth-blown, opal-white glass
Mounting Recessed; 24 W in unisolated ceilings only
Cut-out Ø178-180 mm in 6-15 mm plate
Ø182-184 mm in 15-35 mm plate
Clearances Horizontally: min 67 mm
Built-in height min 113 mm from lower edge of ceiling
Connection 230 V, 5-pole terminal block
Classification IP20, class I
Weight 1.2 kg

LED and driver data

LED type Bridgelux Vero18
Total consumption 24 W (700 mA), alt. 18 W (500 mA)
Operational life min 100,000 hours at ta max 25°C, L80B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM

Driver Helvar LED driver, 350-700 mA
Operational life min 50,000 hours

Variants and options


Item No. Punkt Lamp 200
2894- 18 W, 500 mA
2897- 24 W, 700 mA

20202 3 mm glass shade
2040-20 Ring for soft ceilings

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
2 = white 927 = 2700 K, 90 Ra
9 = grey metallic 930 = 3000 K, 90 Ra
940 = 4000 K, 90 Ra

empty = no dimming
V = 1-10 V
D = Dali

Example Item No.: 2897-2927V = Punkt Lamp 200, 24 W, white, 2700 K, 90 Ra, dimmable 1-10 V

Media & downloads


Punkt Lamp 200 - Frederikshavn Town Hall


Punkt Lamp 150 and 200 - Frederikshavn Town Hall

DesignFocus Lighting

The Punkt Lamp is designed in 1976 by the founder of Focus, Nils Kristiansen. The largest of the five downlighters, 200 mm, completed the family in 2002.

The simplicity in design and quality in material has made the Punkt Lamp the preferred downlighter among architects. The design is dominated by the inner shade in mouth-blown glass, spreading the light in a pleasant and beautiful way without glaring.
