H+M SURFACE-MOUNTED

Please choose

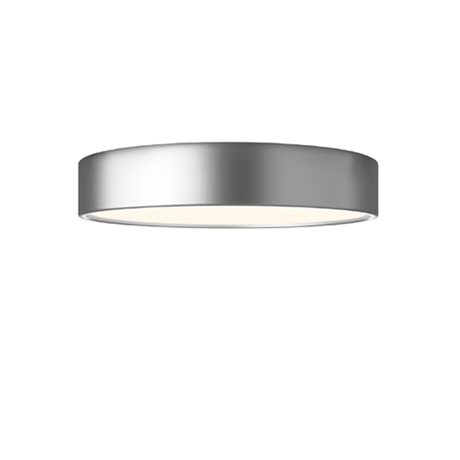

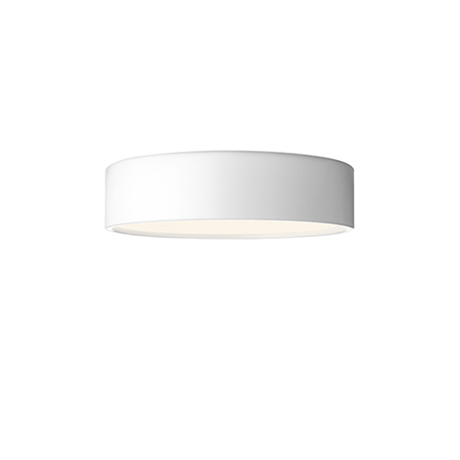

The H+M luminaires are easy to install and to maintain. Safety is high with the shade in impact-resistant and flame-proof polycarbonate and no direct entry to the light source.

Specifications

Ø 300

hm_loft300_skitse

Luminaire

H+M SURFACE-MOUNTED 300
Material Aluminium
Coating White, black, or grey metallic
Shade Opal-white polycarbonate, option for prismatic
Mounting On ceiling or wall
Connection max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification IP20, class I
Weight 1.5 kg


LED and driver data

LED type 244 mm board
Operational life min 50,000 hours at ta max 25° C, L80B10
Total consumption 12-13 W (350 mA), 16-18 W (500 mA)
Colour temperature 2700, 3000, or 4000 Kelvin
Tunable White: 2700-6500 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SCDM
Output ratio 80%

Driver Helvar LED driver, 350-700 mA
Operational life min 50,000 hours

Variants



Item No. H+M 300 surface-mounting
2870- 12-13 W LED, 350 mA
2871- 16-18 W LED, 500 mA




Combine with

Select colour, colour temperature, etc. in the table below.

Colour Shade
1 = white P = polycarbonate
3 = black MP = micro prismatic polycarbonate
9 = grey metallic

Colour temperature Dimming
927 = 2700 K, 90 Ra empty = no dimming
930 = 3000 K, 90 Ra V = 1-10 V
940 = 4000 K, 90 Ra D = Dali
9WD = tunable white, Dali, 90 Ra

Spings for wall mounting
F = two springs


Example Item No.: 2871-3P9WD = H+M 300 surface-mounted, 16 W LED, black, tunable white, 90 Ra, Dali

Media & downloads

hmloft_marstal_1166

Architects Buchardt have used the surface-mounted H+M for the 2006 refurbishment of the Youth Hostel at the island of Marstal.

More photos.

DesignChristian Hvidt Design

The H+M luminaires, designed by Christian Hvidt in the 80'es, are out-and-out retro with modern technology. The new minimalist versions appear light and blend into the preferred style.
The H+M luminaires are classics within interior lighting and rank high as some of the most downloaded fittings in the 3D portal BimObject

Christian Hvidt is active as a freelance designer for Danish and international companies, especially within furniture and lighting.
