TURN HALO

Please choose

By using different Turn Halo variants you can create new spaces by means of light.

By combining the dramatic spot light from Turn Spot Halo and the asymmetrical light from Turn Street Halo you can enlarge the spaces designed by light without using more columns.

Specifications

TURN SPOT HALO

Luminaire

TURN SPOT HALO
Material	Cast aluminium and opal-white acrylate
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade	Clear glass with silked edge
	Honeycomb filter optional
Mounting	Standard brackets for Ø76 mm cylindrical pole
	Adjustable brackets for conical pole and cylindrical > Ø76 mm
	Adapter for Ø60 mm pole optional
	Delivered with 8.5 m lead, 2 x 1 mm2
Connection	In the pole
Classification	IP66, class II; use code for class I
Impact resistance	IK08
Corrosion class	C4, C5 optional
Weight	5.8 kg
Wind sweeping area	0,053 m2

LED

LED type	Bridgelux V18
Beam angle	wide, medium or narrow (38, 19, or 12 degrees)
Operational life	min 100,000 hours at ta max 25° C, L80B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80 Ra, 90 Ra optional
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 400-4700 lm
	3000K: 410-5000 lm
	4000K: 425-5100 lm
Output ratio	78-86%

Driver

Driver	Xitanium Full Xi FP 40 W 0.3-1.0 A, programmable
Inrush current	max 22 A (50% after 290 µs)
Surge protection	L/N-GND: 10 kV, (D4i driver: 8 kV)
	L-N: 6 kV
Operational life	100,000 hours
Dimming	5 steps dimming within the lumen intervals
Other control options	DALI-2, LineSwitch or
	via Zhaga book 18 socket, D4i

Variants and options

Turn Spot Halo is not for use in an upwards pointed direction above mounting axis. Ask for variants for upward lighting.

Item No.	Turn Spot Halo
8840-	V18, wide 38°, programmable, max 35 W
8841-	V18, medium 19°, programmable, max 35 W
8842-	V18, narrow 12°, programmable, max 35 W

Arm for wall mount
8011-	Arm for 1 fixture
8012-	Arm for 2 fixtures
	Arm and fixture will be assembled by Focus Lighting

Design pole	Conical pole with Ø76 mm cylindrical rod
3170-	4 meter pole
3172-	5.5 meter pole
3174-	7 meter pole
1714-1	Adapter for Ø60 mm pole
50200	Rooted base Ø108-140

Fuse box
98158	Fuse box for 2 Neozed fuses up to 16 A

Combine with

Select colour, colour temperature, dimming, etc. in the table.

Colour	Colour temperature
01 = raw anodized	827 = 2700 K, 80 Ra
4 = graphite grey	830 = 3000 K, 80 Ra
9 = silver grey	840 = 4000 K, 80 Ra
17 = corten brown
66 = noir 900

Dimming	Protection class
empty = programmable	empty = class II
D = DALI-2 (4/5-conductor cable)	J = class I
F = LineSwitch
R = Zhaga book 18 socket upwards
RC = Zhaga book 18 socket, City Touch / Interact City

Filter	Mounting
empty = no filter	empty = brackets for cylindrical pole, Ø76 mm
Y = honeycomb filter	B90 = brackets for conical pole, Ø 60-90 mm
	B121 = brackets for conical pole, Ø 91-121 mm

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example: 8840-66830J = Turn Spot Halo, wide, max 4600 lm, programmable, black noir 900, 3000 K, 80 Ra, class I

Media & downloads

Product information

Product data, Turn Spot + Turn Spot HaloPDF Dimensions, Turn with Zhaga socketPDF How many per fuse - recommendedPDF Mounting instructions, cylindrical polePDF Mounting instructions, conical polePDF Product data, arm for wall mountingPDF Mounting instructions, wall mountPDF Sketches, Turn columnsPDF MaintenancePDF RoHS DeclarationPDF

3D files

Turn 3D for RevitRFA Turn 3D for Revit - descriptionTXT Turn 3D for ArchicadGSM Turn 3D for AutoCadDWG Turn 2D for AutoCadDWG Turn 3D for 3D Studio3DS Turn 3DIFC Turn 3DFBX Turn 3D for SketchupSKP

Photos

Product image, Turn Spot HaloJPG Turn Spot Halo + Turn Street Halo, silver greyJPG Turn Spot Halo + Turn Street Halo, black Noir 900JPG Turn Spot Halo, corten brownJPG Turn Spot Halo, AarhusPDF

Photometric data

Turn Spot Halo - without filter

Wide 38°, 2700 KLDT Wide 38°, 2700 KPDF Wide 38°, 3000 KLDT Wide 38°, 3000 KPDF Wide 38°, 4000 KLDT Wide 38°, 4000 KPDF Medium 19°, 2700 KLDT Medium 19°, 2700 KPDF Medium 19°, 3000 KLDT Medium 19°, 3000 KPDF Medium 19°, 4000 KLDT Medium 19°, 4000 KPDF Narrow 12°, 2700 KLDT Narrow 12°, 2700 KPDF Narrow 12°, 3000 KLDT Narrow 12°, 3000 KPDF Narrow 12°, 4000 KLDT Narrow 12°, 4000 KPDF

Turn Spot Halo - Honeycomb filter

Wide 38°, honeycomb filter, 2700 KLDT Wide 38°, honeycomb filter, 2700 KPDF Wide 38°, honeycomb filter, 3000 KLDT Wide 38°, honeycomb filter, 3000 KPDF Wide 38°, honeycomb filter, 4000 KLDT Wide 38°, honeycomb filter, 4000 KPDF Medium 19°, honeycomb filter, 2700 KLDT Medium 19°, honeycomb filter, 2700 KPDF Medium 19°, honeycomb filter, 3000 KLDT Medium 19°, honeycomb filter, 3000 KPDF Medium 19°, honeycomb filter, 4000 KLDT Medium 19°, honeycomb filter, 4000 KPDF Narrow 12°, honeycomb filter, 2700 KLDT Narrow 12°, honeycomb filter, 2700 KPDF Narrow 12°, honeycomb filter, 3000 KLDT Narrow 12°, honeycomb filter, 3000 KPDF Narrow 12°, honeycomb filter, 4000 KLDT Narrow 12°, honeycomb filter, 4000 KPDF

All ldt files

LDT.zipZIP

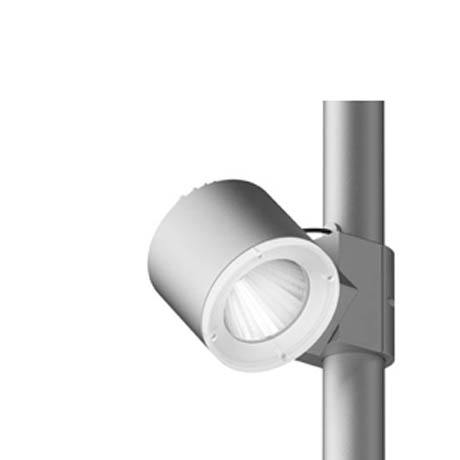

Turn Spot Halo at the new Media & Journalist Education Centre in Aarhus. Architects: Arkitema Architects - Photo: Niels Nygaard

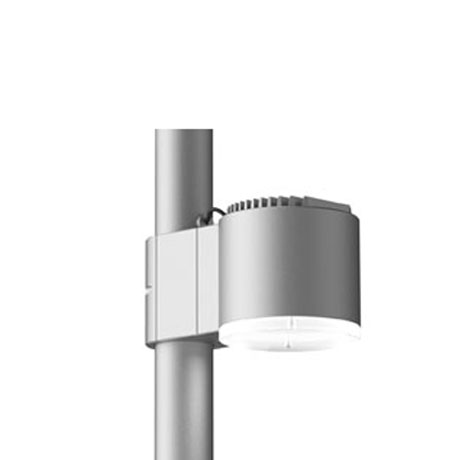

Turn Spot Halo and Turn Street Halo, black noir 900. The Turn Spot has an angle of 45 degrees to the column; Turn Street with lense optics is pointing downwards.
