QUARTO

Please choose

Quarto was designed by Torsten Thorup and Claus Bonderup back in the 80'es, but is still going strong due to its classic circular shape. However, the Quarto from Focus Lighting differs from the many similar products because it ends up in a cylindrical shape. This completes and adds harmony to the shape. Throughout the years Quarto has proven its ability to both adding quality to and adjusting to its environment.

Specifications

270 exterior

quarto270_ude_skitse

Luminaire

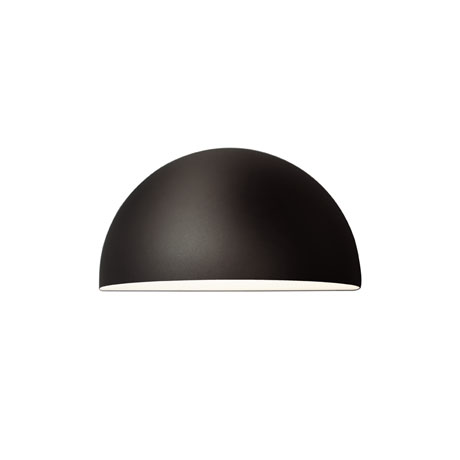

QUARTO 270 exterior
Material Hot-dipped galvanised steel, brass, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: SW302G, close to RAL 9007
Corten brown: Mars 2525 YX355F
Shade Flame-proof, opal-white polycarbonate
Mounting On wall or wall box
Connection Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification IP45, class I, IK04
Weight 1.3 kg


LED and driver data

LED type Bridgelux V8
Operational life min 100,000 hours at ta max 25° C, L80B10
Total consumption 9 or 12 W
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 75%

Driver Helvar LED driver
350 or 500 mA
Operational life min 50,000 hours

Variants



Item No. Quarto 270 exterior
6803- 9 W LED, 350 mA
6804- 12 W LED, 500 mA


Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
1 = white 927 = 2700 K, 90 Ra
3 = black 930 = 3000 K, 90 Ra
4 = graphite grey 940 = 4000 K, 90 Ra
6 = polished brass
8 = polished copper
9 = galvanised
17 = corten brown
66 = noir 900

Dimming Protection class
empty = no dimming empty = class I
V = 1-10 V K = class II
D = Dali

Example Item No.: 6804-66927D = Quarto 270, 12 W LED, noir 900, 2700 K, 90 Ra, Dali, class I

quarto270_ude_skitse

Luminaire

QUARTO 270 exterior
Material Hot-dipped galvanised steel, brass, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: SW302G, close to RAL 9007
Corten brown: Mars 2525 YX355F
Shade Flame-proof, opal-white polycarbonate
Mounting On wall or wall box
Connection Max two cables, 1.5 mm2, into 3-pole terminal block, 4 mm2
Classification IP45, class I, IK04
Weight 1.1 kg


Lamp type

E27 max 57 W, max length 110 mm, max diameter 56 mm
See recommendations below.
Output ratio 58%


Variants and options



Item No. Quarto 270 exterior
6001- max 57 W, E27

Option
1100-2 E27 LED, Philips Core Pro LED 9 W, 2700 K, 80 Ra, 15,000 hours operation
1100-3 E27 LED, Philips Core Pro LED 9 W, 3000 K, 80 Ra, 15,000 hours operation
1100-6 E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation

Combine with

Select colour in the table below.

Colour Protection class
1 = white empty = class I
3 = black K = class II
4 = graphite grey
6 = polished brass
8 = polished copper
9 = galvanised
17 = corten brown
66 = noir 900


Example of product code: 6001-9 = Quarto 270, E27, galvanised, class I

Media & downloads

aarhus_5_1166

Qaurto 270 graphite grey, Bed&Breakfast hotel at Port Marselis, Aarhus

aarhus_3_1166

Quarto 270 graphite grey, Bed&Breakfast hotel at Port Marselis, Aarhus

fla-focus-lighting-18_1166

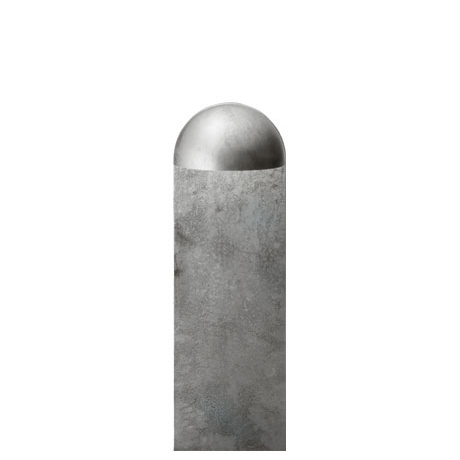

Quarto 270 and Bollard Q, galvanised

See more photos
fla-focus-lighting-19_1166

Quarto 270 and Bollard Q, galvanised

See more photos
fla-focus-lighting-21_1166

Quarto 270 and Bollard Q, galvanised

See more photos

DesignTorsten Thorup & Claus Bonderup

Quarto is one of many luminaires designed by Torsten Thorup & Claus Bonderup for Focus Lighting. The cooperation began in the late 70es with Confetti and other pendant lamps.
