PELÉE RECESSED

Please choose

The inner conical circles of the Pelée downlighters contribute to a comfortable, non-glaring spread of light. The shade in opal-white acrylate offers excellent diffusion and an elegant finish.

Comprising pendants, wall fittings, downlighters and surface-mounted fixtures, the Pelée family covers most indoor applications.

Specifications

Ø 250

pelee-250_skitse

Luminaire

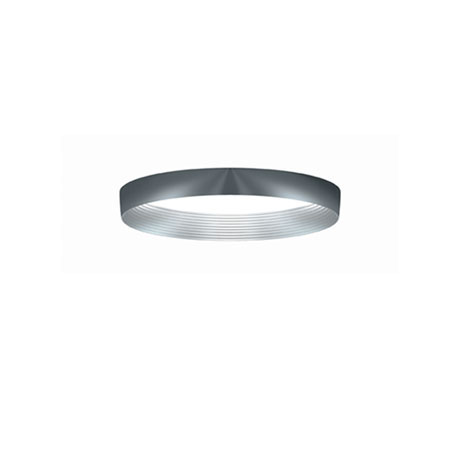

PELÉE 250
Material Cast aluminium
Coating/finish White: RAL 9010 Textura, SA310G, Akzo Nobel
Alu-grey: RAL 9006 Textura, SP9965 CWS
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Sand blasted with transparent coating
Shade Opalised or micro prismatic acrylate
Mounting To be recessed, option for reinforcement of ceiling
Cut-out Ø229-234 mm
Thickness of plate 10-40 mm
Clearances 100 mm from lower ceiling edge, cables included
Recommended distance to construction: 50 mm
Connection max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification IP20, class I - IP23 upon request
Weight 2.2 kg


LED and driver data

LED type 213 mm board
Operational life min 50,000 hours at ta max 25° C, L80B10
Total consumption 10 or 14 W
Colour temperature 2700, 3000, or 4000 Kelvin
Tunable White: 2700-6500 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SCDM
Output ratio 69%

Driver LED driver, 20 W, dimming optional
Inrush current max 5 A (50% after 50 µs)
Operational life min 50,000 hours

Variants and options



Item No. Pelée 250
2837- 10 W LED, 350 mA
2838- 14 W LED, 500 mA - OBS: Do not cover!

Option
2832-20 Reinforcement of soft ceilings, Pelée 250



Combine with

Select colour, colour temperature, etc. in the table below.

Colour Shade
1 = white empty = opal-white acrylate
3 = sand blasted with clear coating M = micro prismatic acrylate
9 = alu-grey
17 = corten brown
66 = noir 900

Colour temperature Dimming
927 = 2700 K, 90 Ra empty = no dimming
930 = 3000 K, 90 Ra V = 1-10 V
940 = 4000 K, 90 Ra D = DALI
9WD = tunable white, Dali, 90 Ra



Example Item No.: 2837-1930V = Pelée 250, 10 W LED, white, 3000 K, 90 Ra, 1-10 V dimming

Media & downloads

peleeindbyg_hall_1166

Several variants of the Pelée luminaire are used in the White House, Bryggen Esbjerg. Here the Ø385 recessed, grey metallic.

More photos here
peleeindbyg_recep_1166

Pelée Ø385 recessed, white, White House, Bryggen Esbjerg. Architects: Friis & Moltke

More photos here
peleeindbyg_repos_1166

The Pelée luminaires can be seen all over the White House, the new company house of Claus Sørensen Ejendomme at Bryggen, Esbjerg.

More photos here
peleeindbyg_bord_1166

The Pelée luminaires blend into the interiors at White House, Claus Sørensen Ejendomme, Esbjerg. Architects: Friis & Moltke

More photos here
pelee_jelling_maleri_1166

Cubo are the architects behind the new congregation house at Jelling. Here Pelée 385 recessed - bronze brown.

pelee_jelling_symmetri_1166

Pelée 385 recessed, Jelling Congregation House.

pelee_jelling_3close_900

Pelée 385 recessed - bronze brown, Jelling Congregation House.

peleeindbyg_272_1166

The creative use of Pelée recessed in both sizes is unconventional for an institution. The luminaires are equipped with tunable white (2700-6500 K).

More photos from Ny Kærvang
peleeindbyg_cubo1881_1166

Many variants of the Pelée luminaire characterize the new Kærvang and underline Cubo's unconventional, non-institutional architecture.

More photos from Ny Kærvang

DesignCubo Architects

The inspirationen to the new downlighter was found at the island of Martinique where the Pelée volcano has formed uniform steps of ashes and lava.
