"Showing the Way"

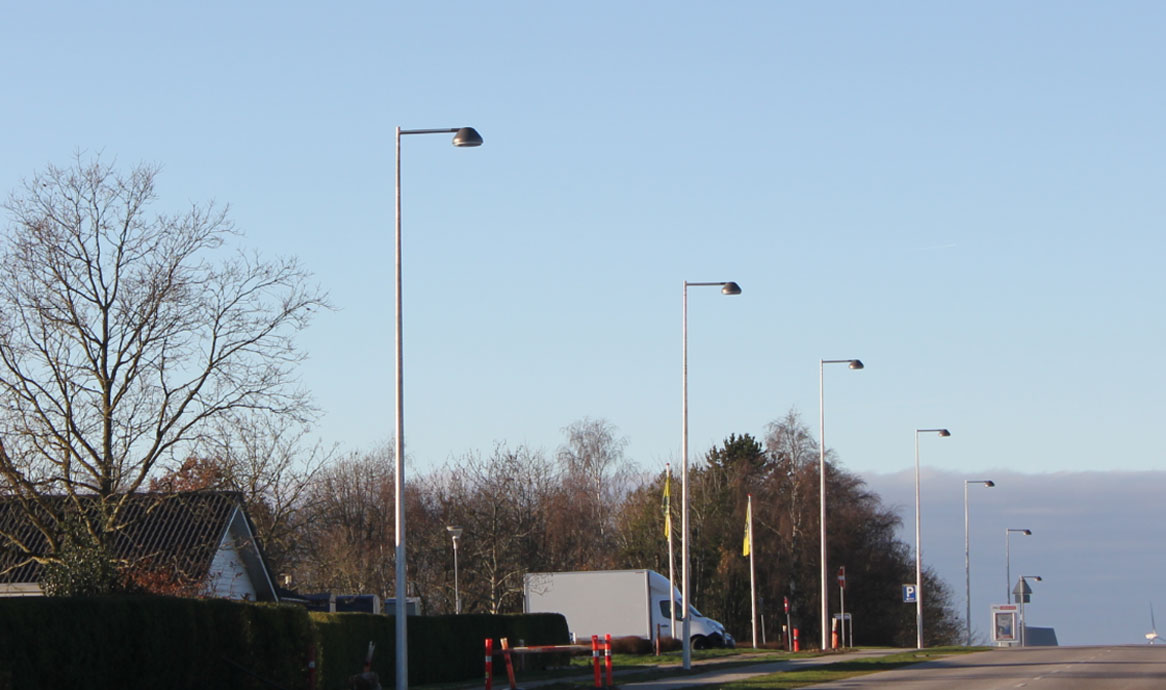

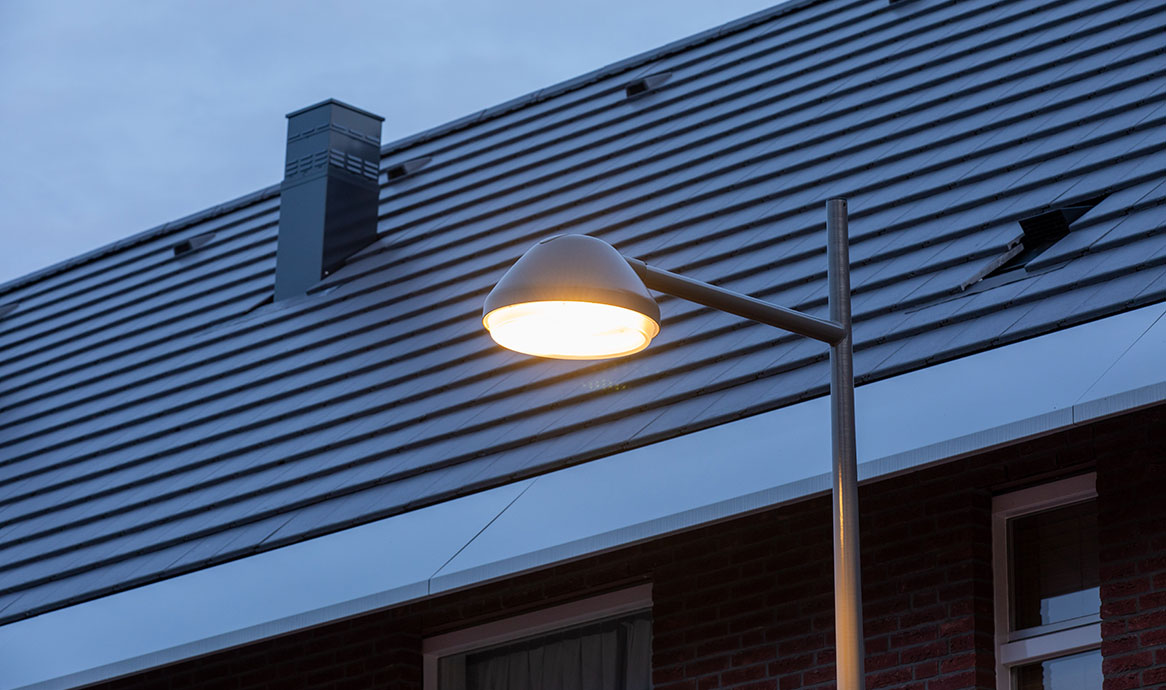

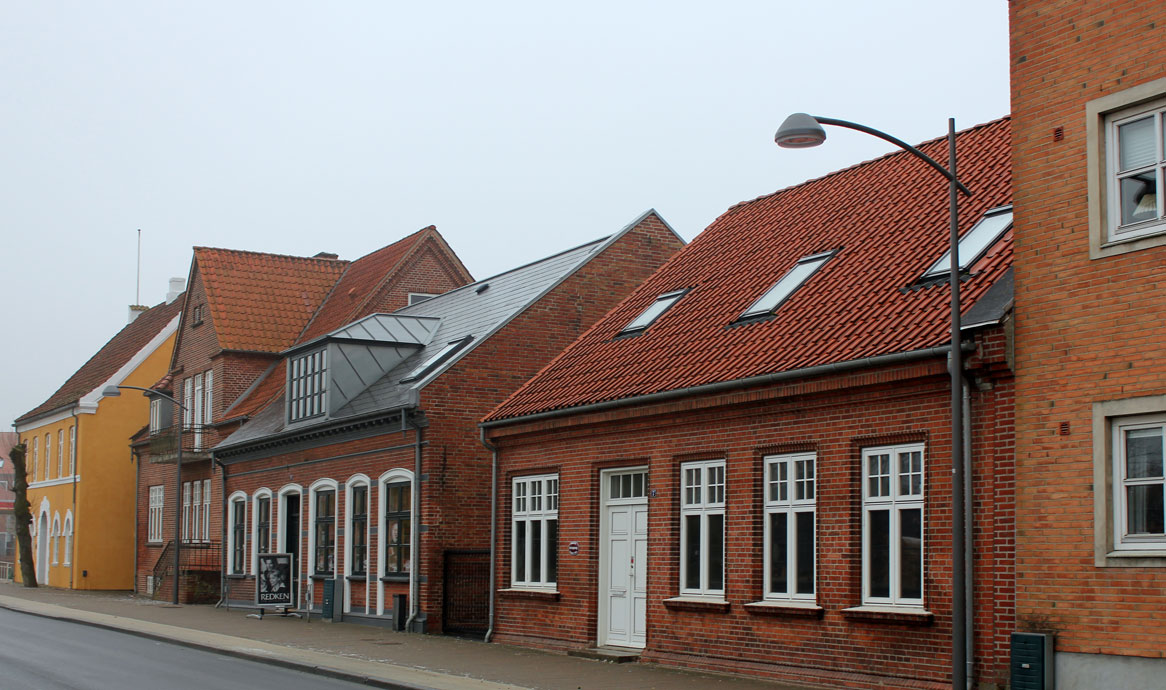

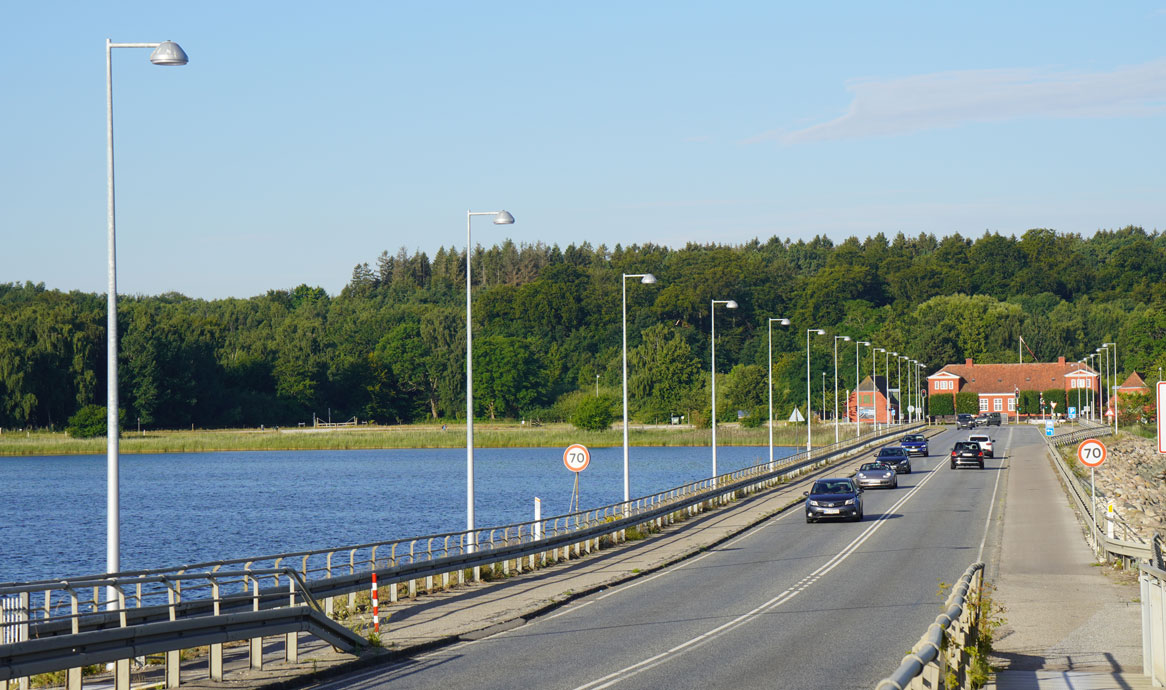

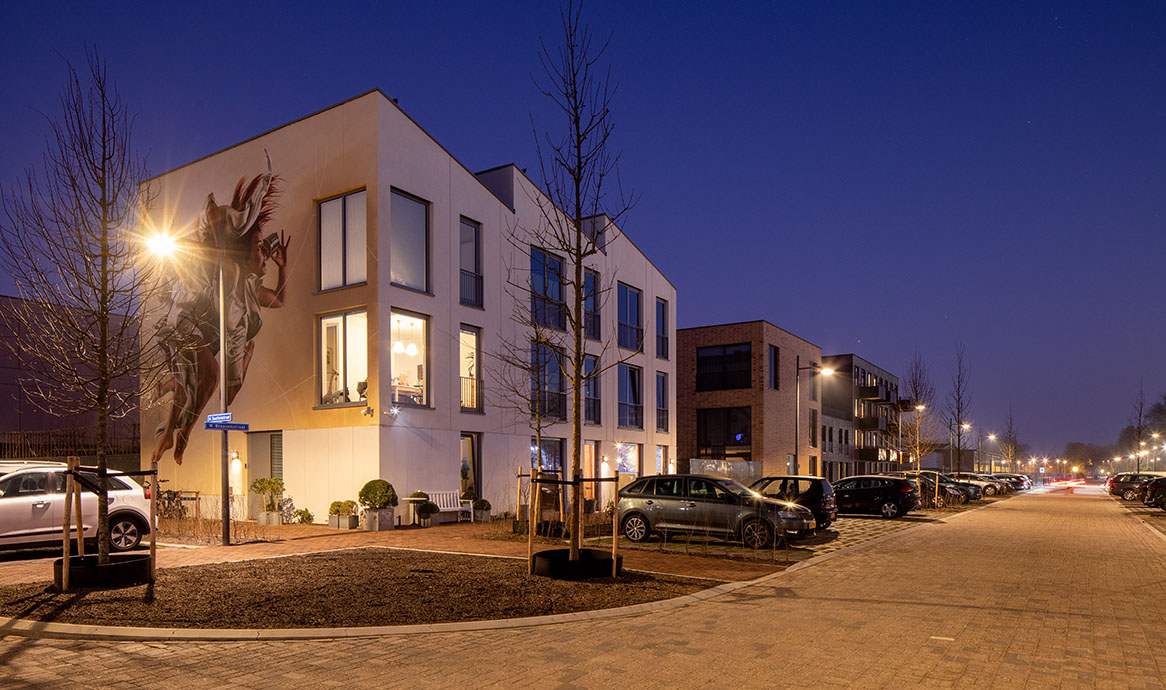

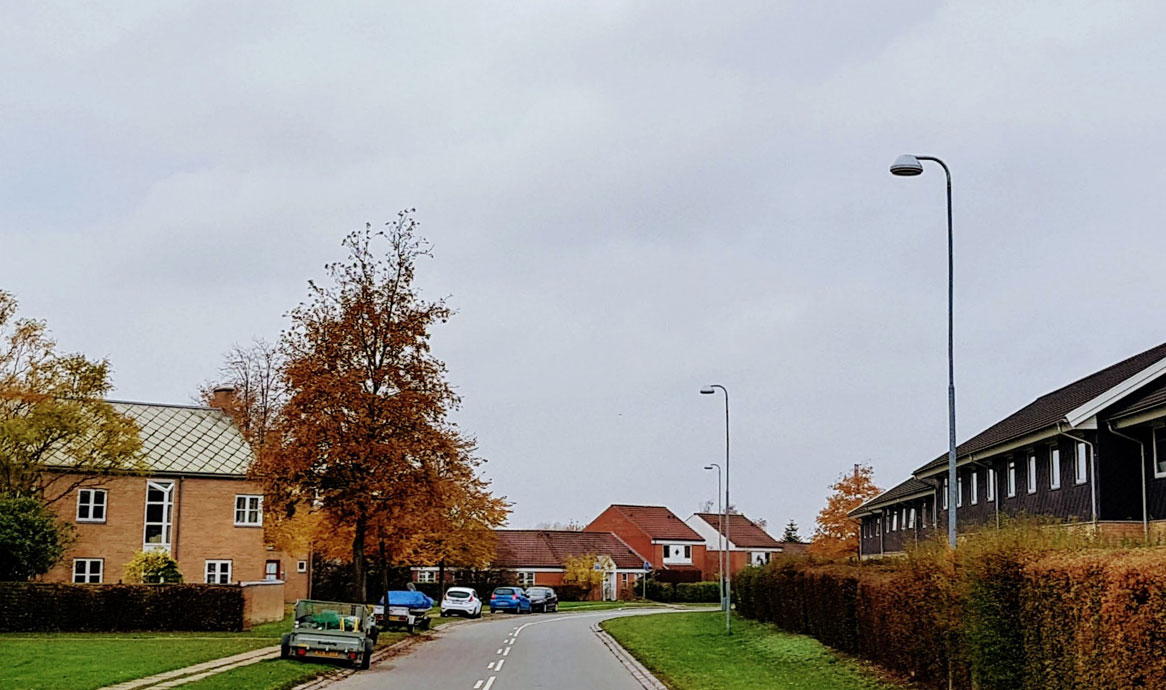

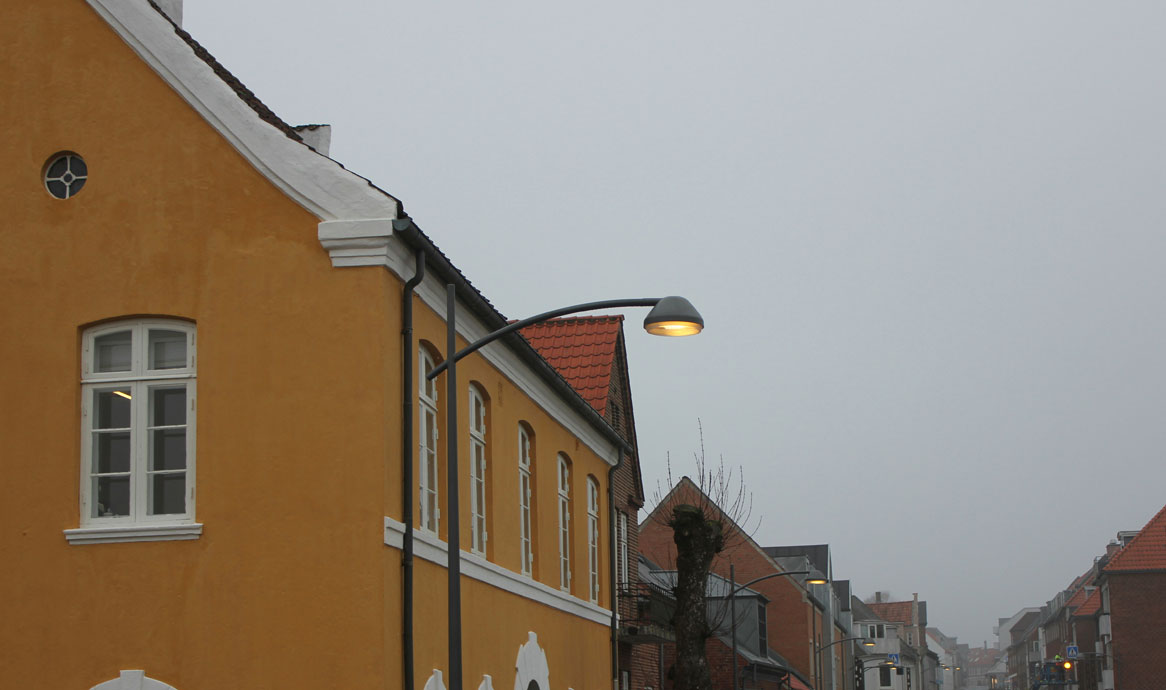

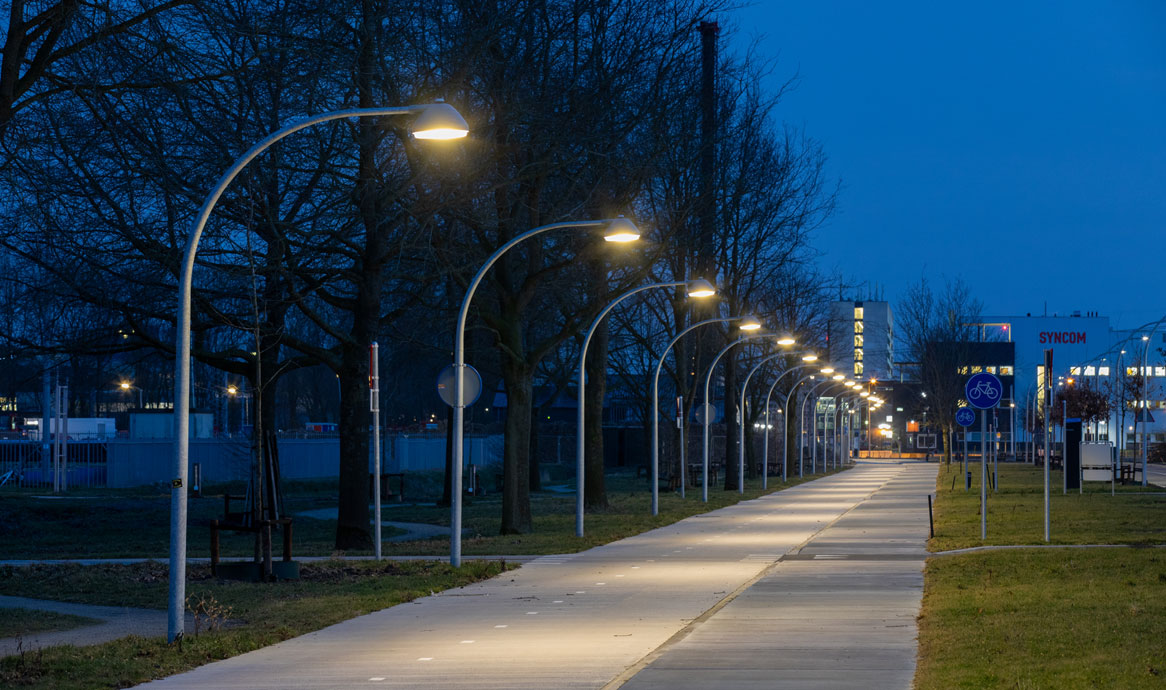

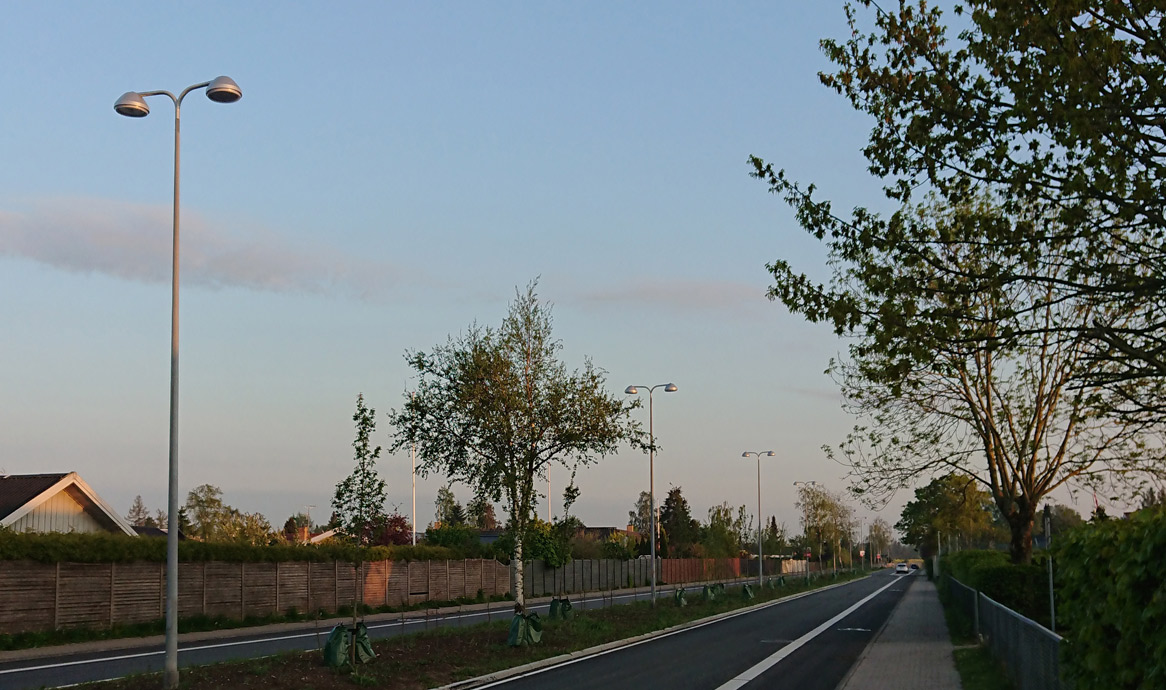

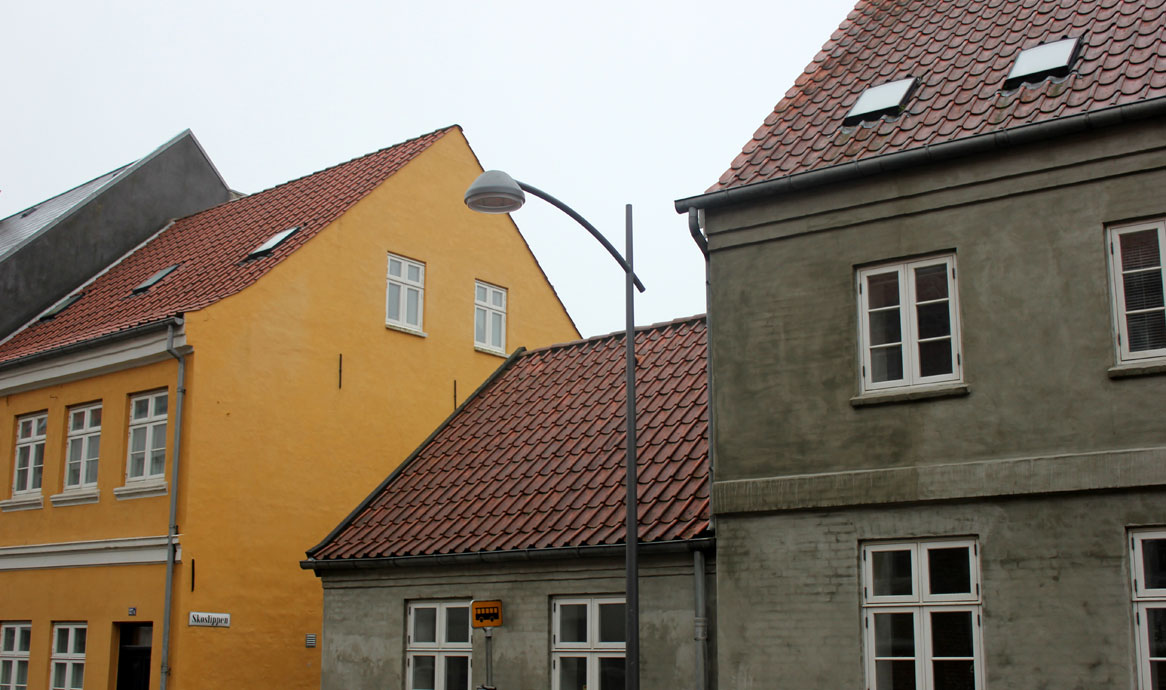

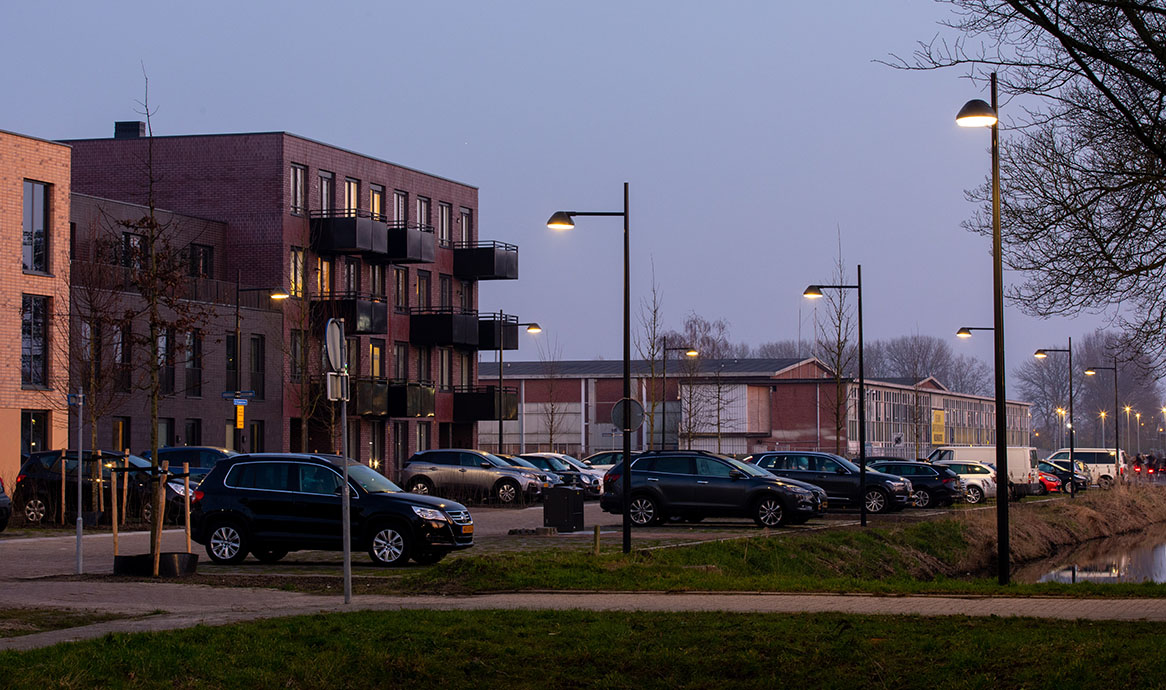

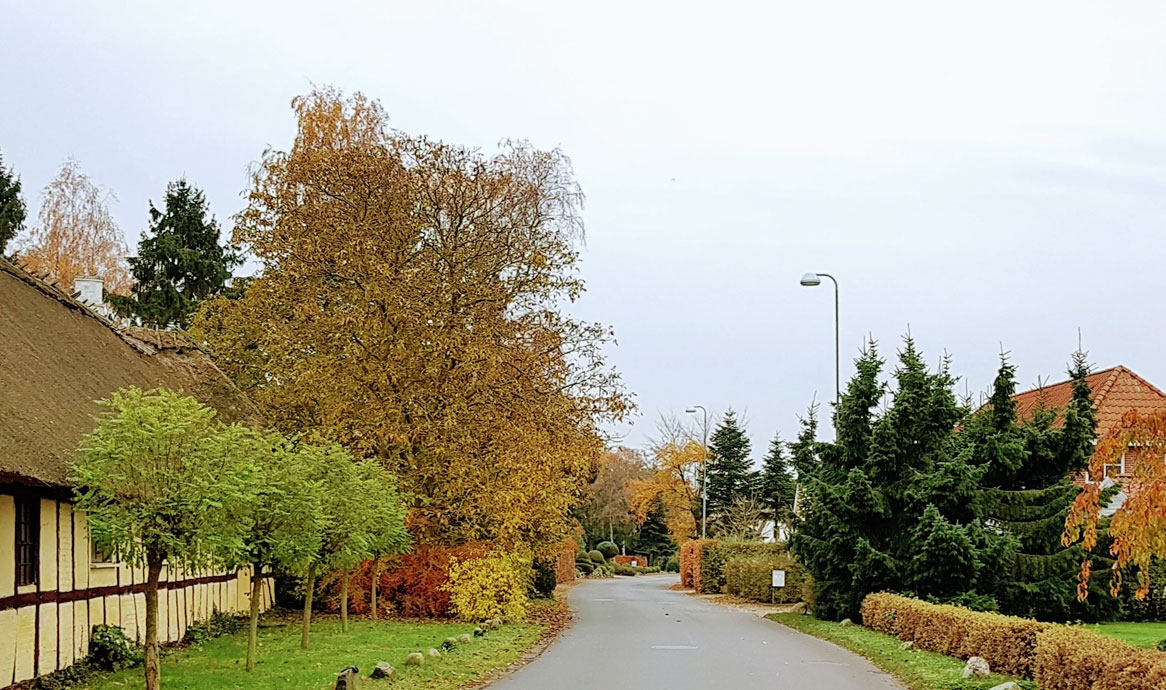

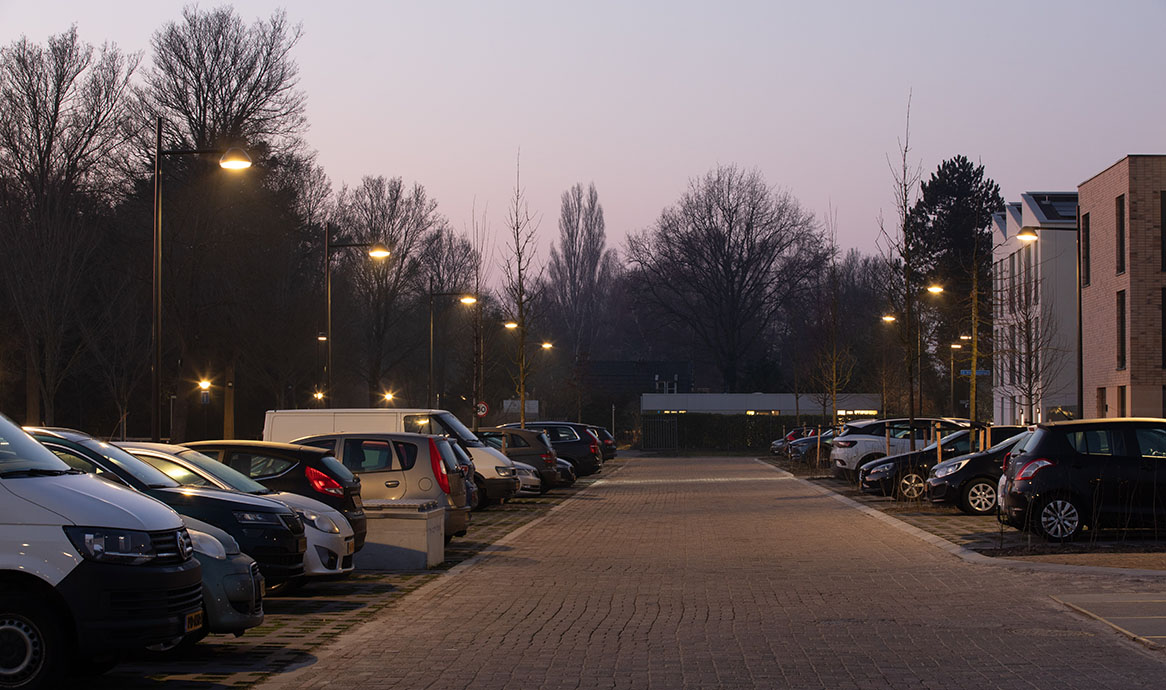

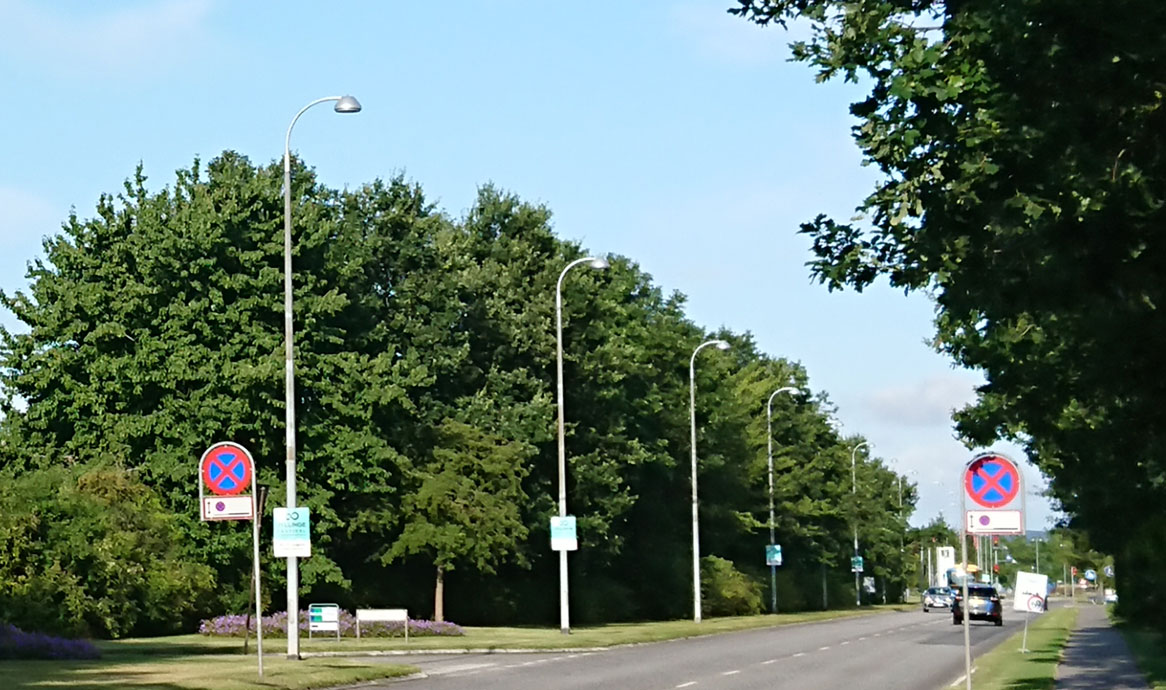

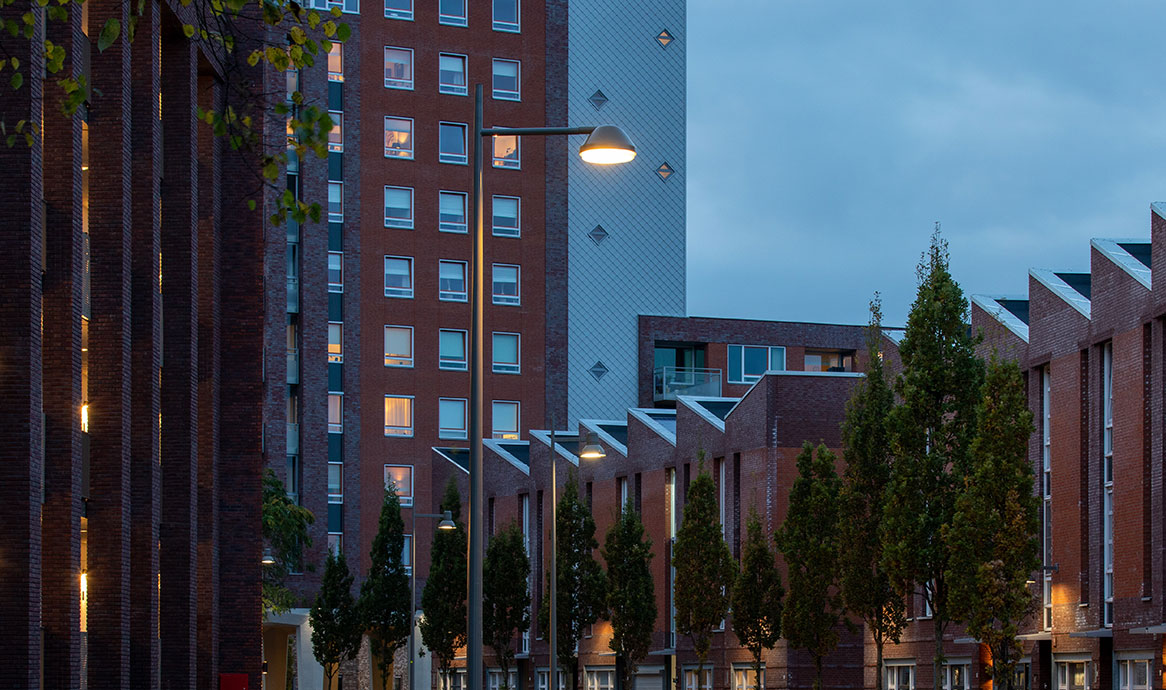

WAY is a versatile street luminaire to be mounted on arm or wire.
Like the other AART designs, WAY is modern lines in a classic form - a Nordic design that will suit streets and urban space in any city in the world.
The unique shade offers optical guidance and reduces discomfort glare to a minimum.
| WAY side entry | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black: Noir 900 Sablé, SN315F, Akzo Nobel | |
| Shade | Clear, impact resistant PMMA with frosted edge |
| Mounting | Side entry, Ø 48 or Ø 60 mm |
| Connection | In the post |
| Delivered with 10.5 m lead, 2 x 1 mm2 | |
| Classification | IP66, class II; use code for class I |
| Impact resistance | IK08 |
| Corrosion class | C4, C5 optional |
| Weight | max 11 kg |
| Wind-sweeping area | 0.11 m2 (laterally) |
| LED with lenses | 3xFF-DA 2x6 or 4xFF-DA 2x8 with T3 lenses for local roads, P, HS, and C classes |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L100B10 |
| Constant lumen output | |
| Temperature range | -30 to +35° C |
| Colour temperature | View configurator |
| Colour rendering | View configurator |
| Colour accuracy | 5 steps SDCM |
| Driver 3xFF | Xi FP 75W 0.2-0.7A |
|---|---|
| Inrush current | 43 A (50% efter 260 µs) |
| Driver 4xFF | Xi FP 165W 0.3-1.0A |
|---|---|
| Inrush current | 58 A (50% efter 340 µs) |
| Nominal voltage, AC | 230 Vac |
| Nominal frequency range | 50-60 Hz |
| Max pre-protection | 16 A |
| Surge protection | L/N-GND: 10 kV |
| L-N: 6 kV | |
| Operational life | min 100,000 hours |
| Dimming/control | 5 steps dimming within the lumen intervals |
| Other control options | DALI-2, LineSwitch or |
| via Zhaga book 18 socket, D4i |

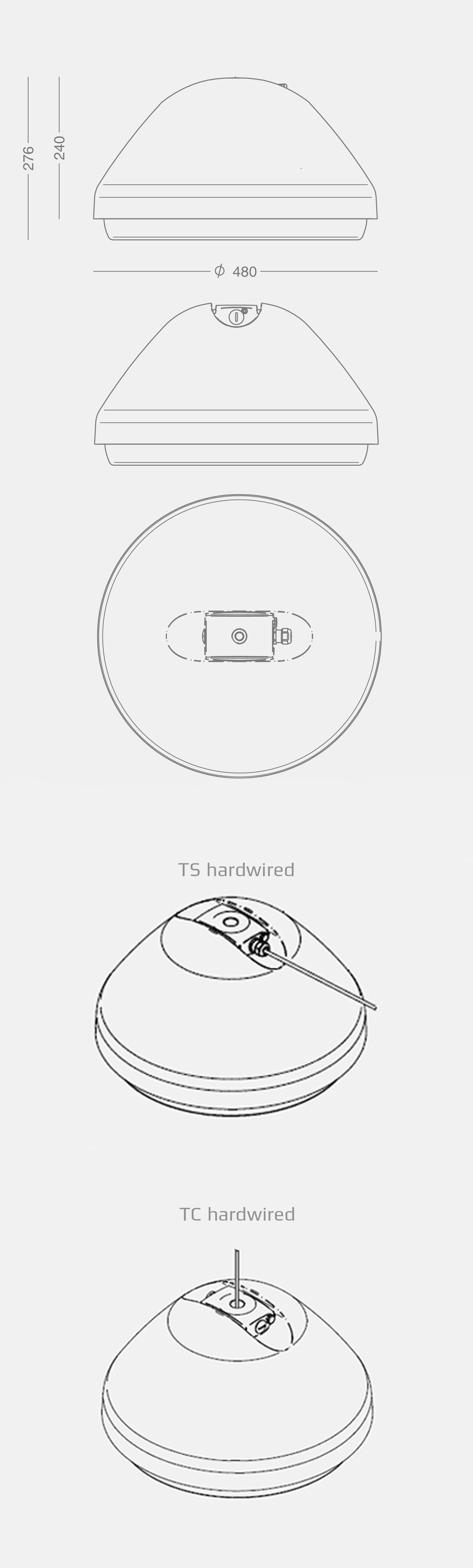

WAY is a flexible luminaire for side or top entry. It is designed the Nordic way to avoid light pollution and glaring.

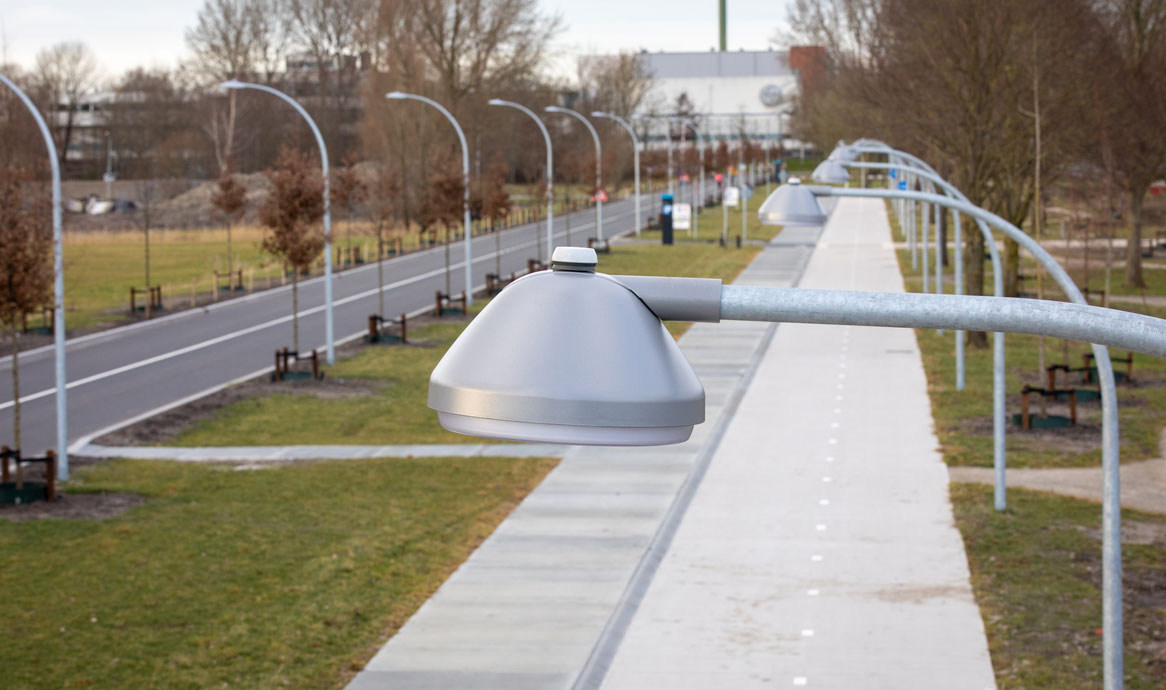

WAY is made of only two components - the housing and the shade, and by very few, simple add-ons it can be mounted on arm or wire.

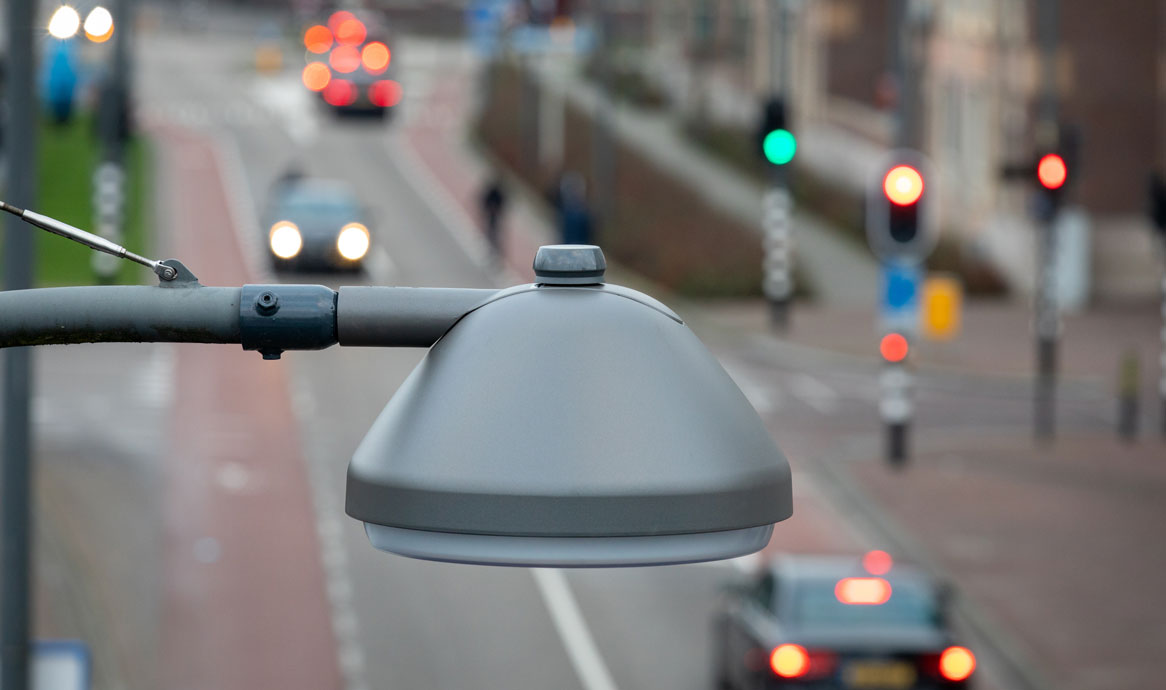

The shade is parallel to the ground but has a protuberant, frosted edge, which will enhance optical guidance. A visually glowing element with anti-glare function offers the friendly optical guidance on our way – driving or walking – literally “Showing the WAY”.
