Nyx is a range of exterior fittings for wall, bollard, or pole mounting. NYX is the answer to today’s demands for pleasant and well-defined light directed to the place where light is required.

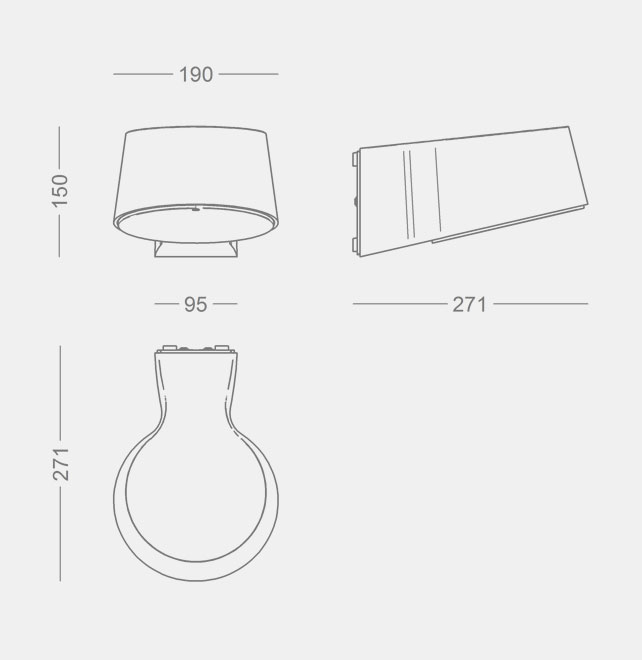

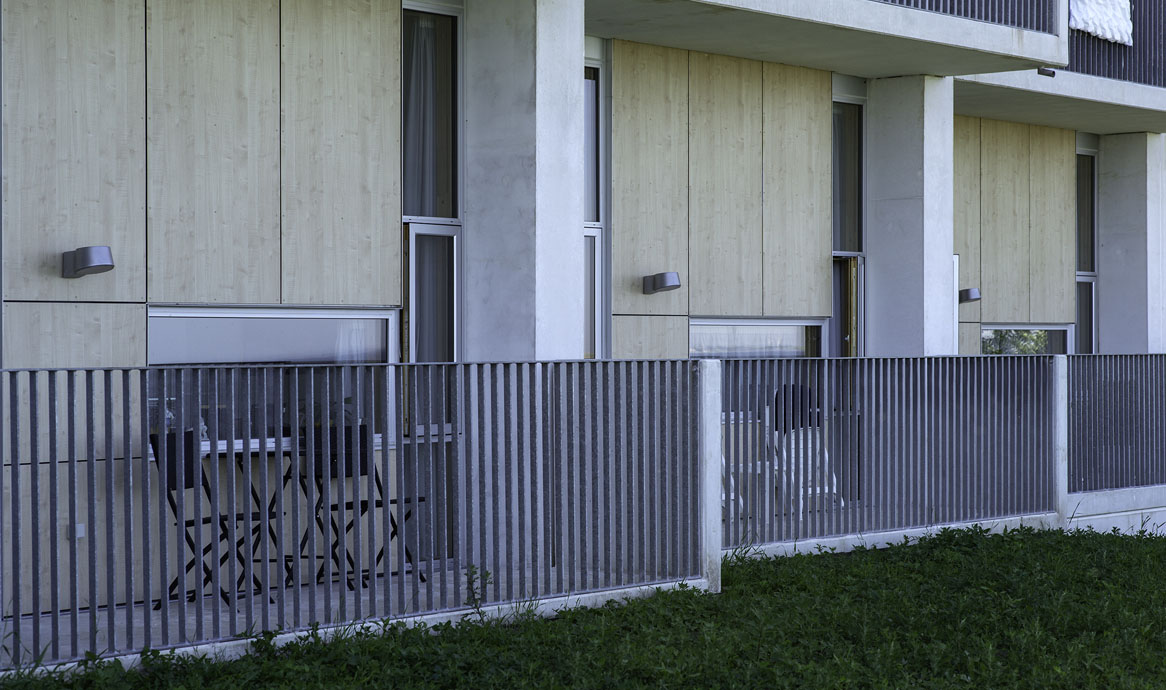

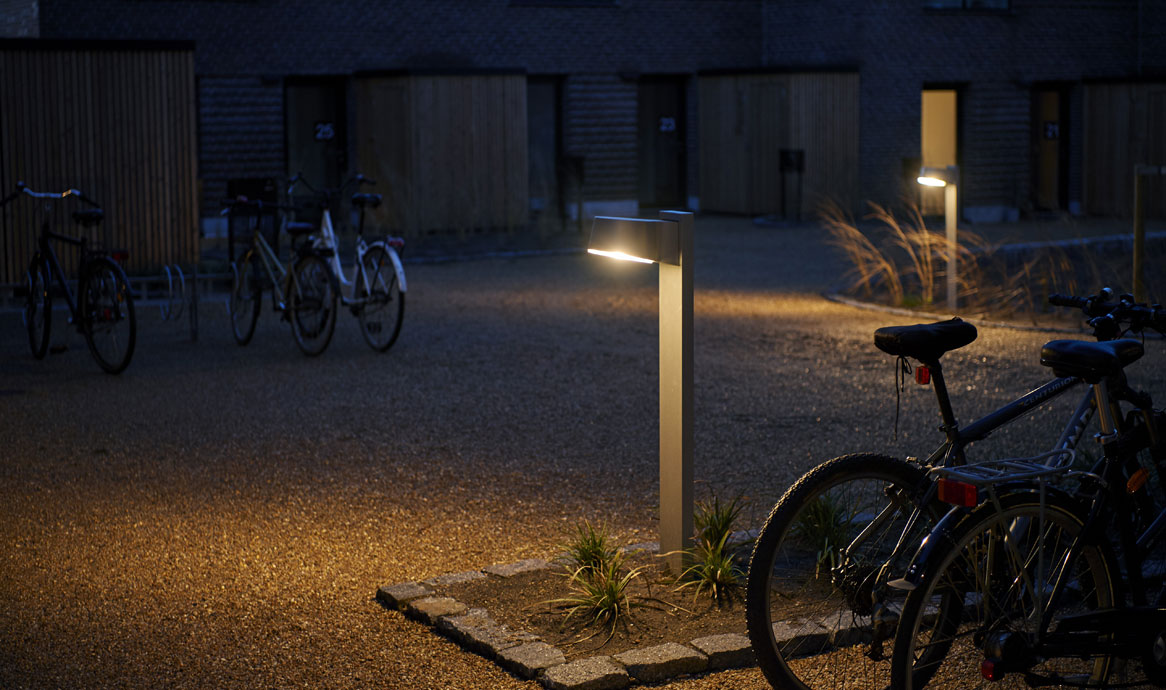

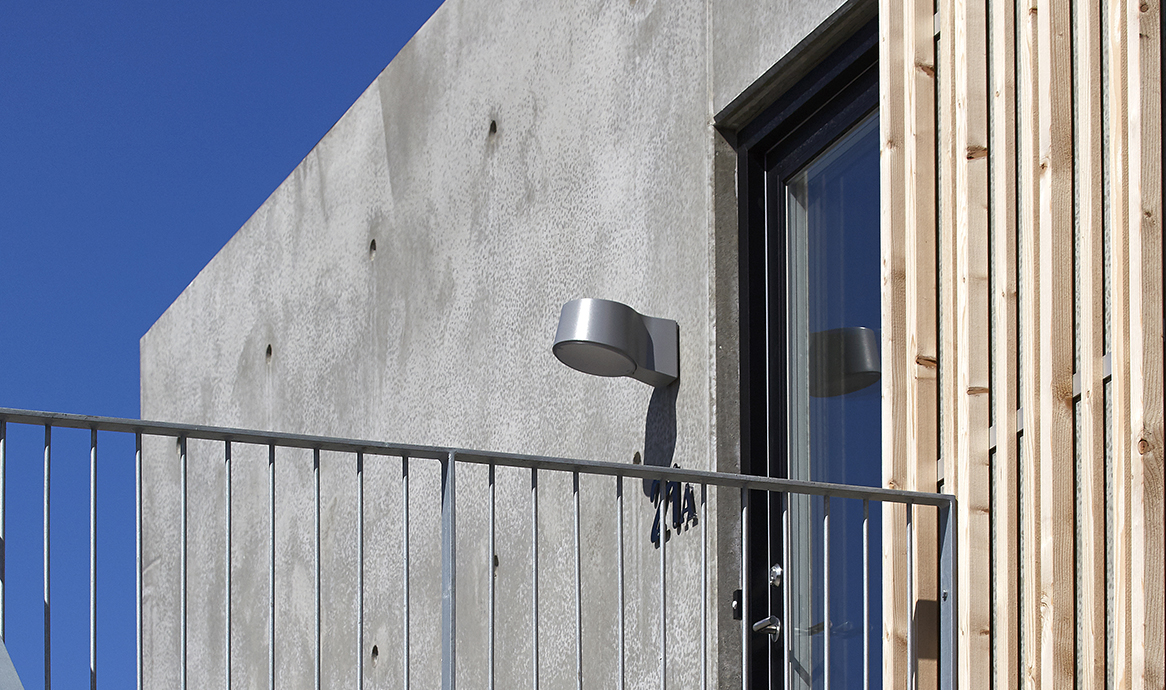

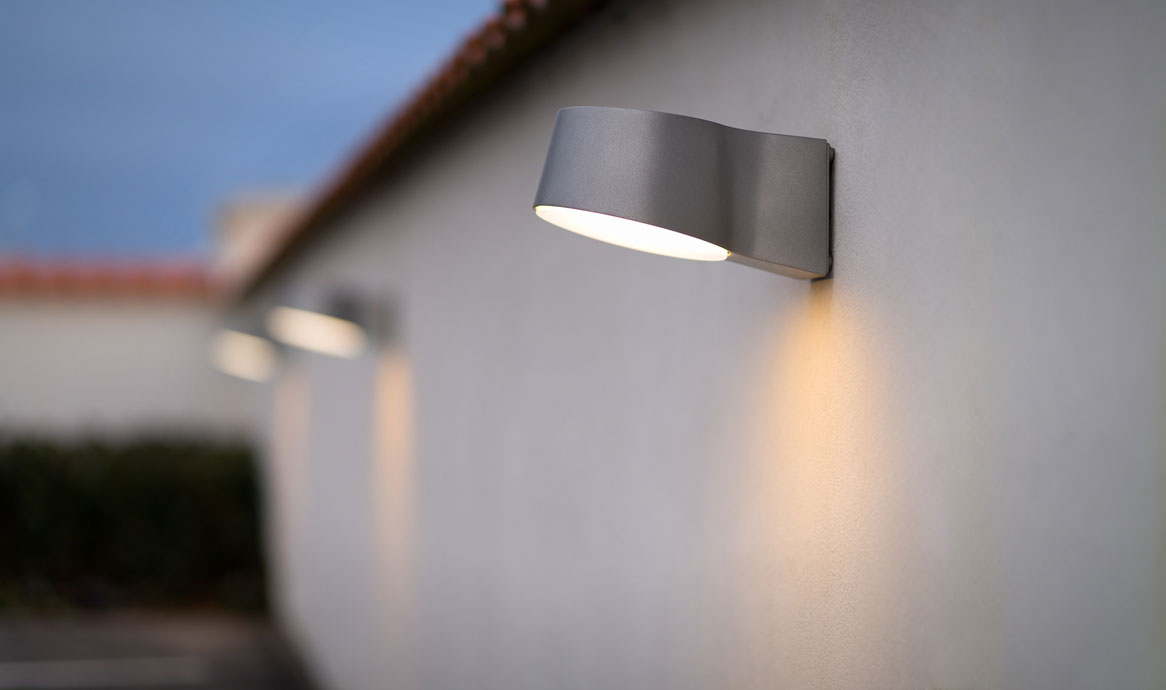

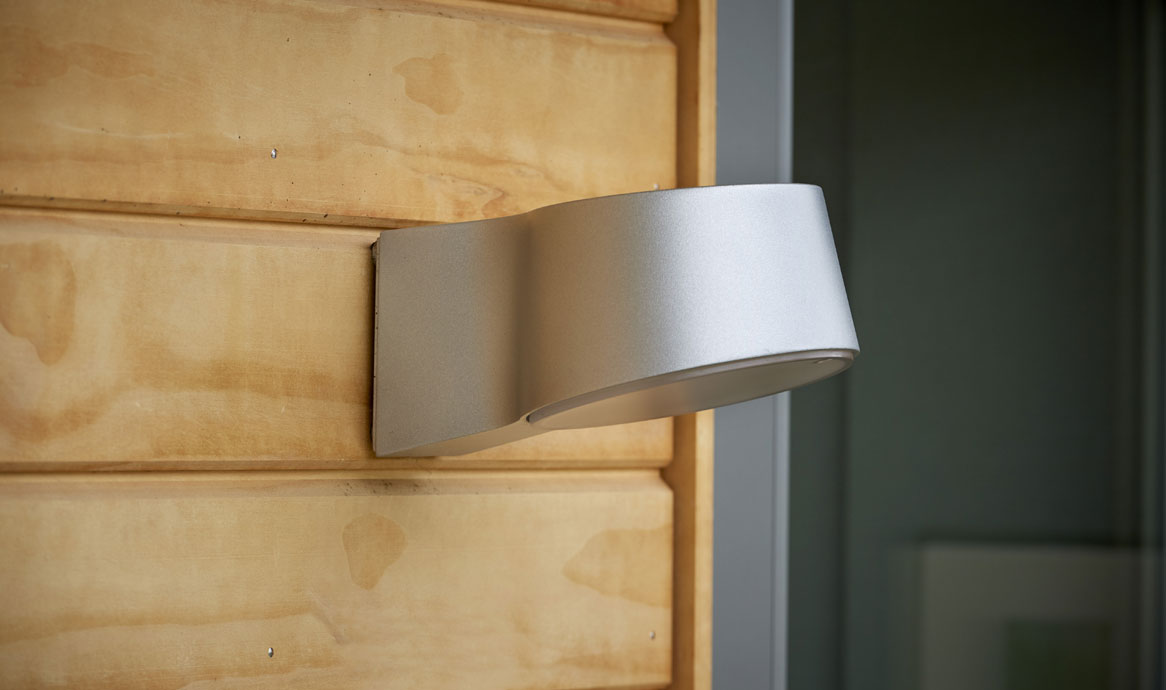

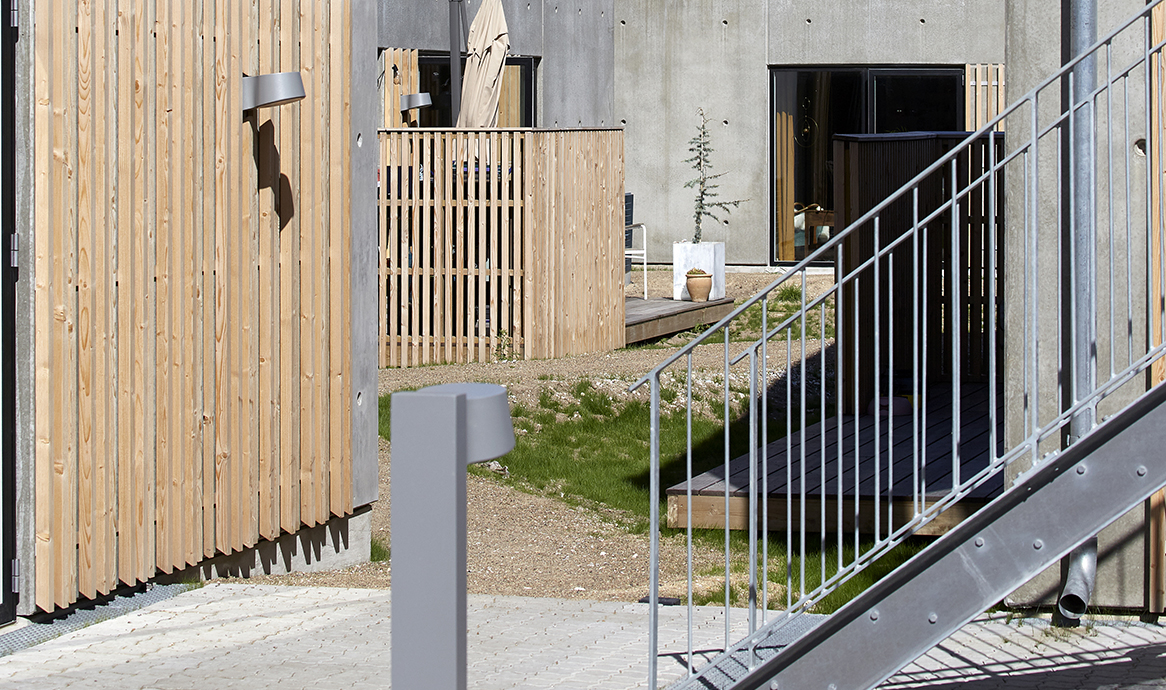

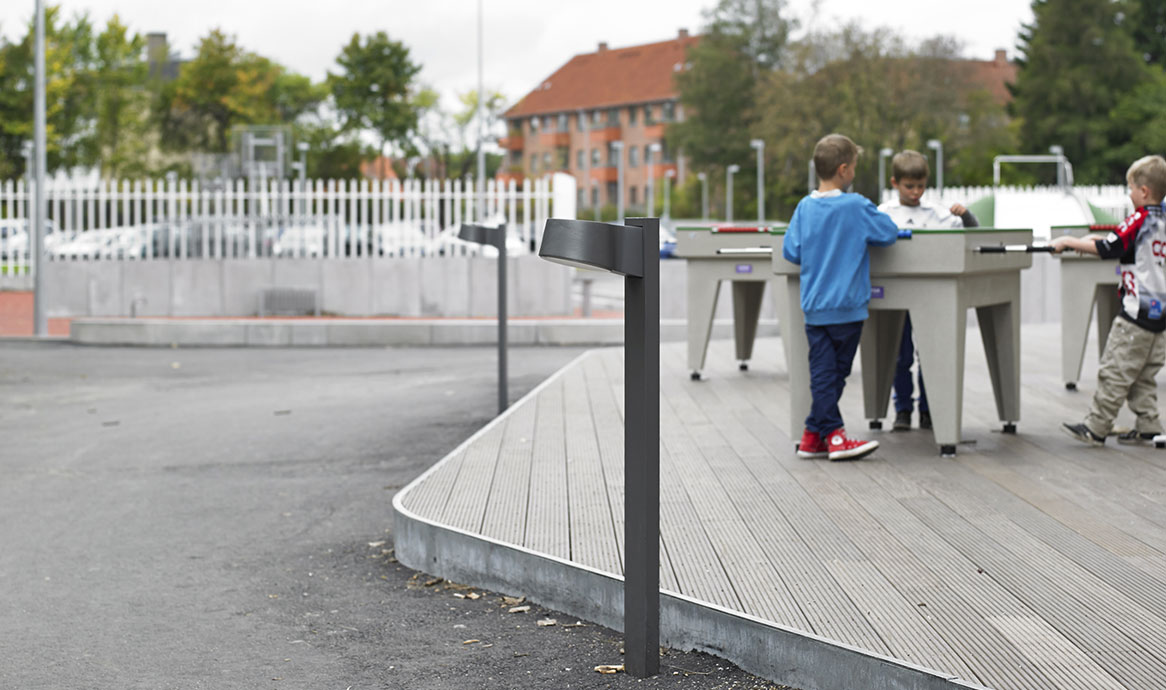

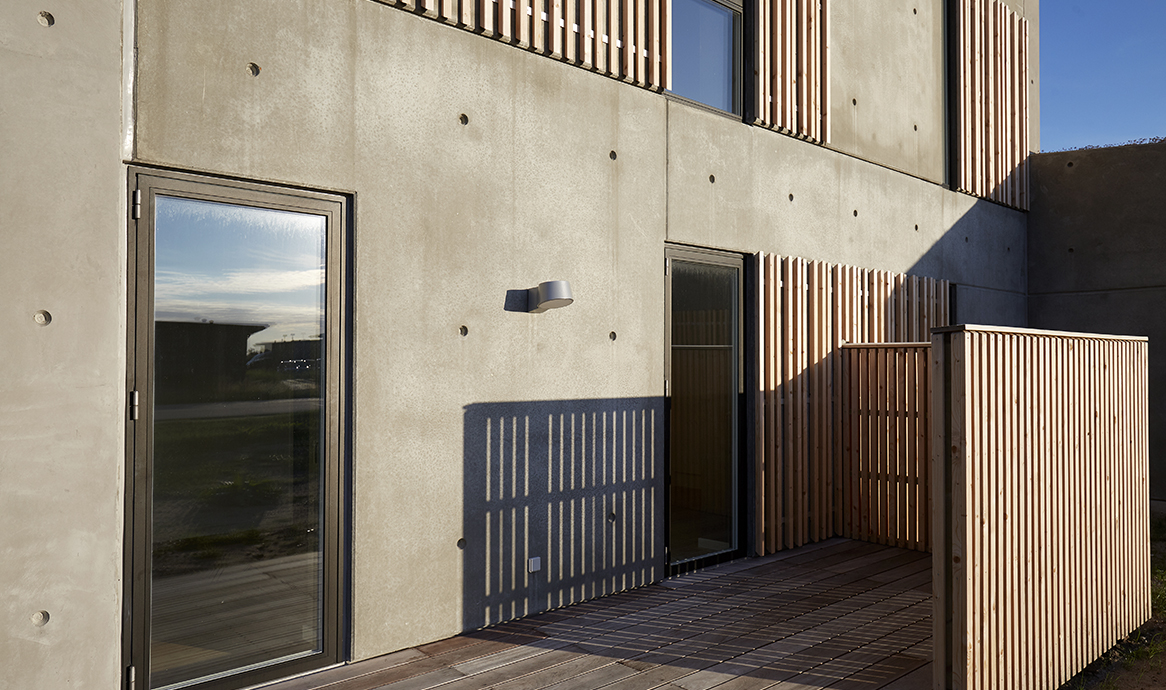

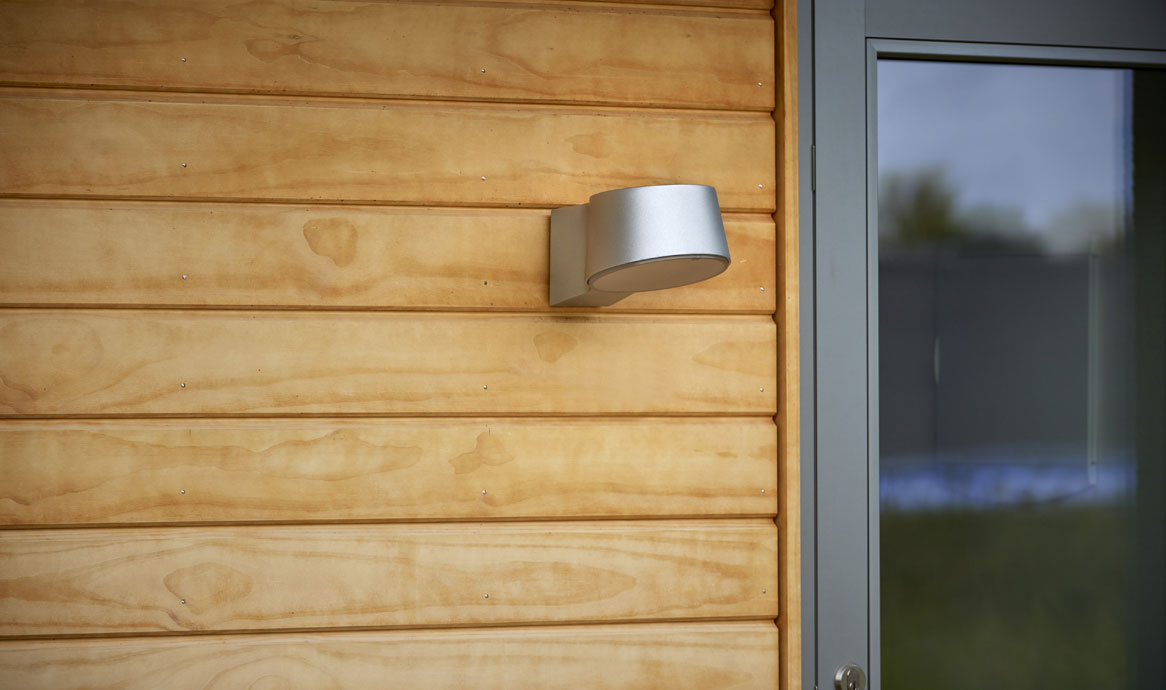

The Nyx 190 fitting can be mounted on wall or bollard.
Nyx 330 is available both as wall fitting and as lantern.
| NYX 190 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Black: RAL 9005, SN805G, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Shade | Frosted polycarbonate |
| Mounting | On wall or special pole, double cable entry |
| Option for base for visible installation | |
| Connection | Max two cables into 5 x 2.5 mm2 terminal block |
| Classification | IP66, class I or II |
| Impact resistance | IK10 |
| Corrosion class | C4, C5 optional |
| Weight | 2.6 kg |
| LED type | Bridgelux COB |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L100B10 |
| Total consumption | 6, 8, or 11 W |
| Colour temperature | View configurator |
| Colour rendering | View configurator |
| Colour accuracy | 3 steps SDCM |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
More about Vilhelm Lauritzen Architects here.
