H+M RECESSED

Please choose

The H+M luminaires are easy to install and to maintain. Safety is high with the shade in impact-resistant acrylate and no direct entry to the light source. The shade is also available in flame-proof polycarbonate.

The H+M for recession is also available with shade in sand-blasted acrylate. The sand-blasting proces is excellent for high opacity and superior light diffusion. The sandblasted shade is an integral part of the luminaire, whereas the standard shade lies loose in the housing edge.

Specifications

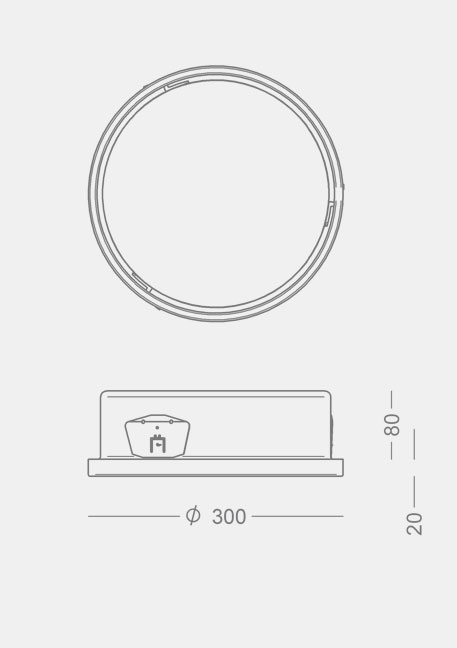

Ø 300

Please choose

Luminaire

H+M RECESSED 300
Material	Aluminium
Coating	White or grey metallic
Shade, loose	Opal-white polycarbonate
Shade, firm	Micro prismatic acrylate
Mounting	To be recessed, option for reinforcement of ceiling
Cut-out	Ø275-280 mm
Thickness of plate	10-40 mm
Built-in height	100 mm from lower ceiling edge, cables included
	Recommended distance to construction: 50 mm
Connection	max two cables, 5 x 1.5 mm², into 5-pole terminal block, 2 x 2.5 mm²
Classification	IP20, class I
Weight	2 kg

LED and driver data

LED type	244 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	11 or 15 W
Colour temperature	View configurator
Colour rendering	View configurator
Colour accuracy	3 steps SCDM

Driver	LED driver, 20 W, dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 50,000 hours

Media &

downloads

Product information

Product data, H+M recessed PDF LED modules for H+M 300 PDF Mounting instructions H+M 300, recessed PDF Mounting instructions H+M 300, recessed, fixed shade PDF Maintenance PDF RoHS Declaration PDF

3D files

H+M recessed GSM H+M 300 downlighter RFA H+M 300 downlighter DWG H+M 300 downlighter 3DS

Photos

Product image, H+M recessed JPG

Photometric data

H+M 300, polycarbonate shade

H+M 300, 11 W, 2700 K LDT H+M 300, 11 W, 2700 K PDF H+M 300, 11 W, 3000 K LDT H+M 300, 11 W, 3000 K PDF H+M 300, 11 W, 4000 K LDT H+M 300, 11 W, 4000 K PDF H+M 300, 15 W, 2700 K LDT H+M 300, 15 W, 2700 K PDF H+M 300, 15 W, 3000 K LDT H+M 300, 15 W, 3000 K PDF H+M 300, 15 W, 4000 K LDT H+M 300, 15 W, 4000 K PDF

H+M 300, prismatic shade

H+M 300, 11 W, 2700 K, prismatic LDT H+M 300, 11 W, 2700 K, prismatic PDF H+M 300, 11 W, 3000 K, prismatic LDT H+M 300, 11 W, 3000 K, prismatic PDF H+M 300, 11 W, 4000 K, prismatic LDT H+M 300, 11 W, 4000 K, prismatic PDF H+M 300, 15 W, 2700 K, prismatic LDT H+M 300, 15 W, 2700 K, prismatic PDF H+M 300, 15 W, 3000 K, prismatic LDT H+M 300, 15 W, 3000 K, prismatic PDF H+M 300, 15 W, 4000 K, prismatic LDT H+M 300, 15 W, 4000 K, prismatic PDF

All ldt files

LDT.zip ZIP

Sweco Architects have used the H+M 380 in grey metallic at Nørre Gymnasium, Copenhagen.

More photos here

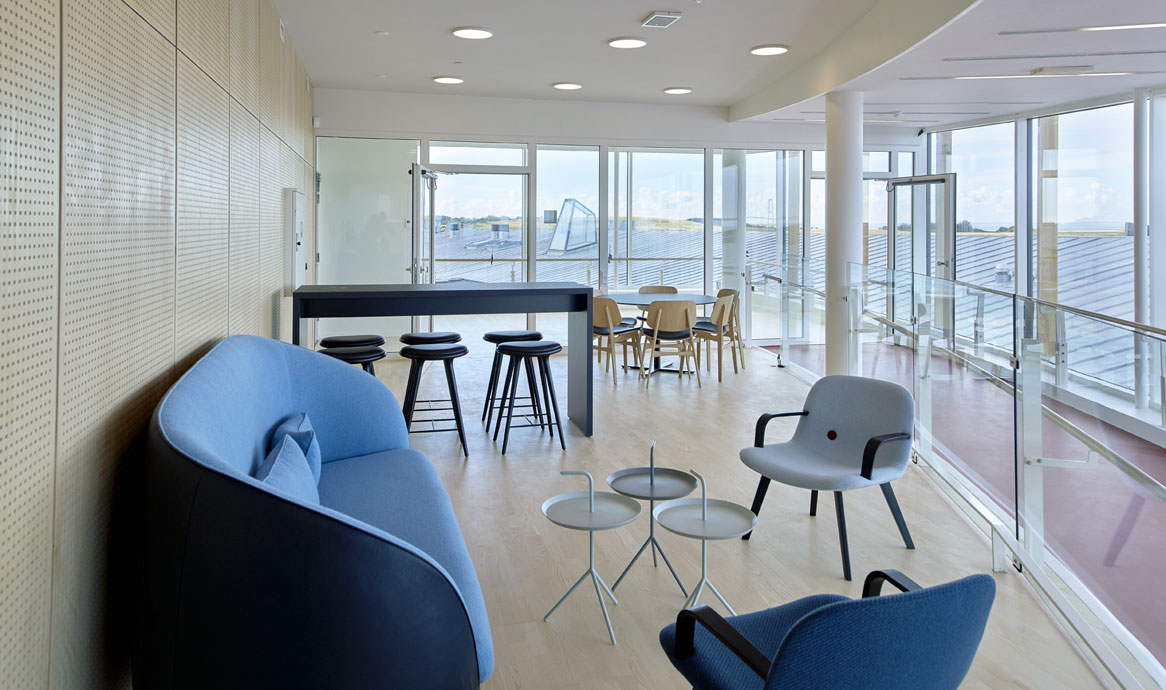

H+M 300 recessed, Musholm Holiday Resort, Korsør.

More photos from Musholm.

Design

Christian Hvidt Design

The H+M luminaires, designed by Christian Hvidt in the 80'es, are out-and-out retro with modern technology. The new minimalist versions appear light and blend into the preferred style.
The H+M luminaires are classics within interior lighting and rank high as some of the most downloaded fittings in the 3D portal BimObject.

Christian Hvidt is active as a freelance designer for Danish and international companies, especially within furniture and lighting.
