H+M PENDANT

Please choose

The H+M Pendant is used for general illumination of halls, shops and other large rooms as well as spot light on working and dining tables.

Like the other luminaires in the H+M family, the pendant is available in two sizes and three standard colours.

Specifications

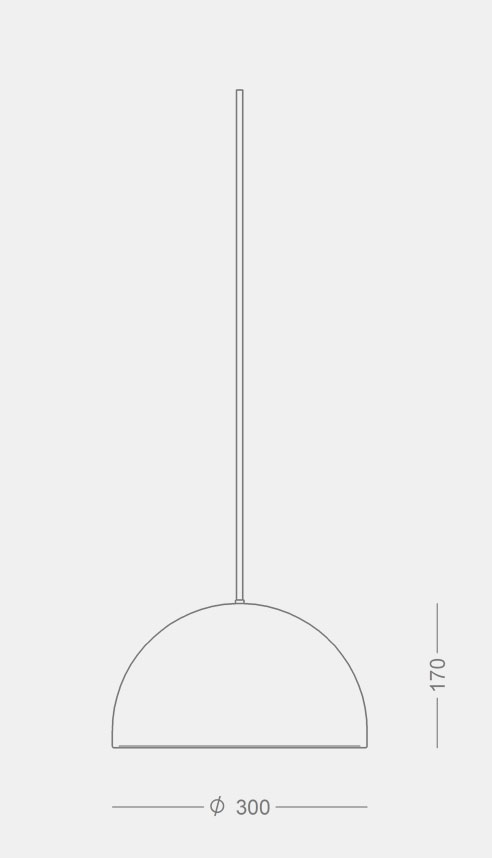

Ø 300

Please choose

Luminaire

H+M PENDANT 300
Material	Aluminium
Coating	White, black, or graphite grey
Shade	Opal-white polycarbonate
Lead	3 m PKAJ, white or black
	Support heat resistant to 140°
Connection	3 x 4 mm²
Classification	IP20, class I or II
Weight	1-3 kg

LED and driver data

LED type	244 mm board
Operational life	min 50,000 hours at ta max 25° C, L80B10
Total consumption	11 or 15 W
Colour temperature	View configurator
Colour rendering	View configurator
Colour accuracy	3 steps SCDM

Driver	LED driver, 20 W, dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 50,000 hours

Item No.	H+M 300 pendant
1006-	max 57 W, max length 95 mm

Colour	Classification
1 = white	empty = class I
3 = black	K = class II
4 = graphite grey

Lead colour
empty = white
Y = black

Media &

downloads

Product information

Product data, H+M Pendant PDF Maintenance PDF RoHS Declaration PDF

3D files

H+M pendant GSM H+M 300 pendant RFA H+M 300 pendant 3DS H+M 300 pendant DWG

Photos

Product image, H+M pendant JPG

Photometric data

H+M 300, 11 W, 2700 K LDT H+M 300, 11 W, 2700 K PDF H+M 300, 11 W, 3000 K LDT H+M 300, 11 W, 3000 K PDF H+M 300, 11 W, 4000 K LDT H+M 300, 11 W, 4000 K PDF H+M 300, 15 W, 2700 K LDT H+M 300, 15 W, 2700 K PDF H+M 300, 15 W, 3000 K LDT H+M 300, 15 W, 3000 K PDF H+M 300, 15 W, 4000 K LDT H+M 300, 15 W, 4000 K PDF

All ldt files

LDT.zip ZIP

Design

Christian Hvidt Design

H+M Pendant, designed by Christian Hvidt in 1976, is out-and-out retro with modern technology. The height of the luminaire is reduced by 30 mm, and the new minimalist version appears light and blend into the preferred style.
The H+M luminaires are classics within interior lighting and rank high as some of the most downloaded fittings in the 3D portal BimObject.

Christian Hvidt is active as a freelance designer for Danish and international companies, especially within furniture and lighting.
