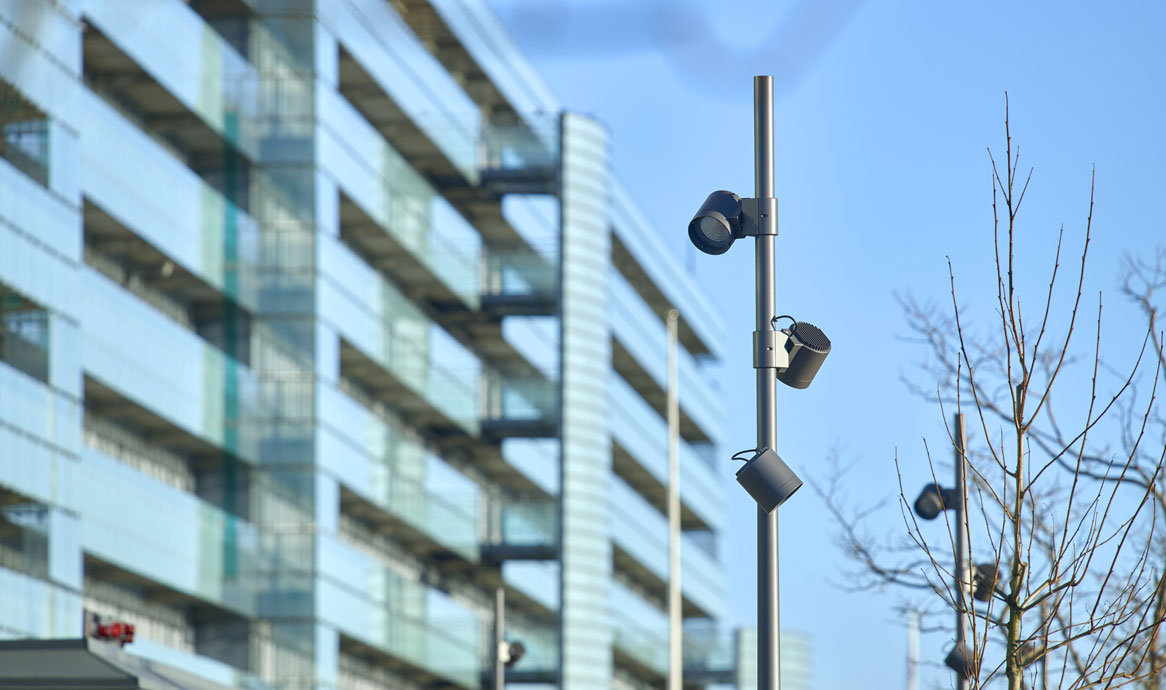

The Turn poles for three or more spots are available in two heights:

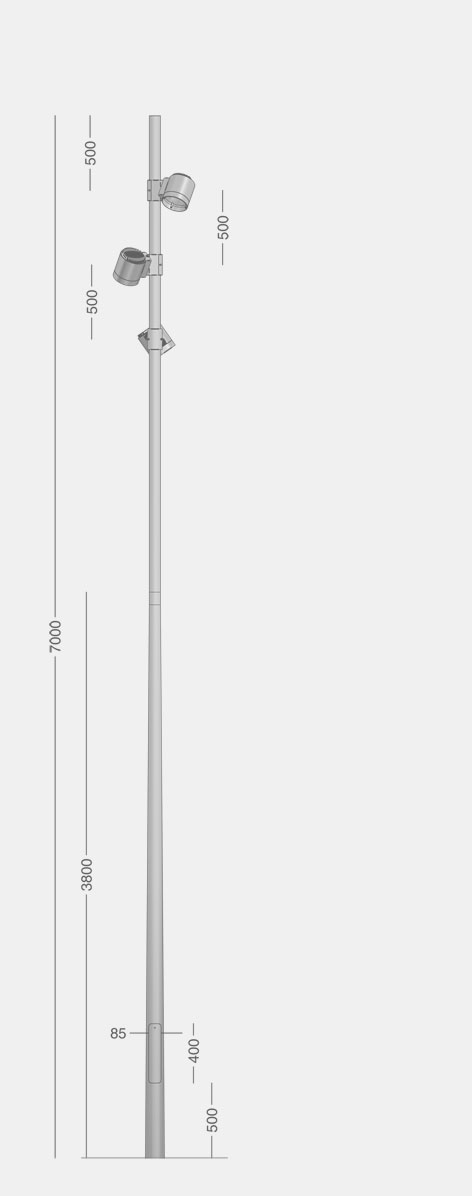

7 meters (3.8 meters conical + 3.2 meters cylindrical Ø76 mm)
5.5 meters (3.5 meters conical + 2 meters cylindrical Ø76 mm)
| TURN POLE | 3.8 m conical + 3.2 m cylindrical Ø76 mm, top closing |
|---|---|
| Materials | Galvanized steel |
| Standard colors | Graphite grey: YW355F, Akzo Nobel |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black noir 900: SN351F, Akzo Nobel | |
| Weight | 47 kg |
| 98158 | Fuse box for 2 Neozed fuses up to 16 A |
|---|---|
| Classification | IP44, class II or class I |
| Entry cables | max 3 pcs 5 x 16 mm2 |
| Dimensions L x W x H | 232 x 69 x 69 mm |
| Pole diameter | min 97 mm |
| 50271 | Fuse box for 3 Neozed fuses up to 16 A |
|---|---|
| Classification | IP54, class II or class I (see HSW data below) |
| Entry cables | max 3 pcs 5 x 16 mm² |
| Dimensions L x W x H | 265 x 72 x 84 mm |
| Pole diameter | min 104 mm |
| Mounting | |
|---|---|
| 50208 | Wing base Ø141–200 pole, for burial installation |
| 50300 | Steel base, 1 meter, for flange mounting |
| 50301 | Concrete base, for flange mounting |
| Accessories | |
|---|---|
| 1714-1 | Adapter for Ø60 mm pole |
| 50201/50205 | Top closing for Ø60 mm pole, grey or black |
| 50206/50207 | Top closing for Ø76 mm pole, grey or black |
