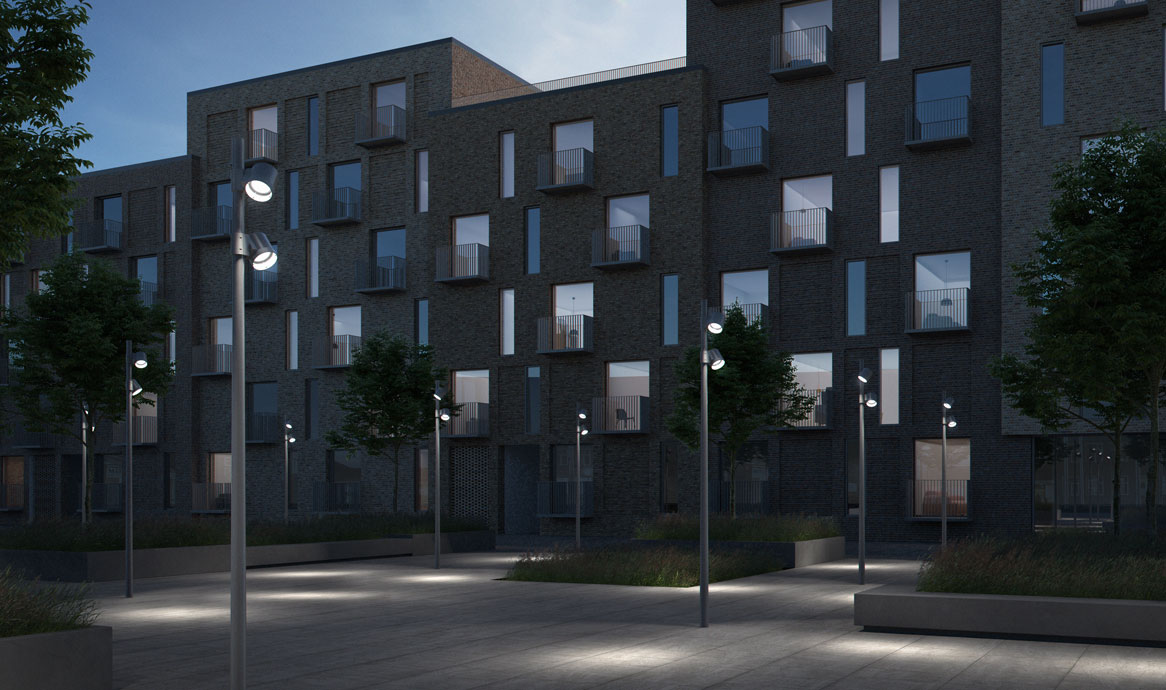

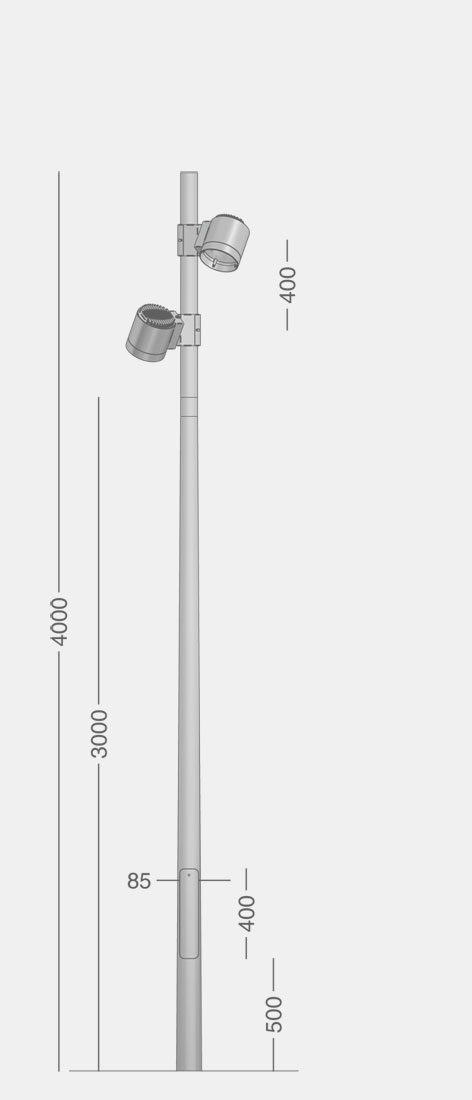

Two Turn spots on a 4-meter pole.
The pole consists of 3 meters conical and 1 meter cylindrical.
| TURN POLE | 3 m conical + 1 m cylindrical Ø76 mm, finished with a cap |
|---|---|
| Materials | Galvanized steel |
| Standard colors | Graphite grey: YW355F, Akzo Nobel |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black noir 900: SN351F, Akzo Nobel | |
| Weight | 30 kg |
| 98158 | Fuse box for 2 Neozed fuses up to 16 A |
|---|---|
| Classification | IP44, class II or class I |
| Entry cables | max 3 pcs 5 x 16 mm² |
| Dimensions L x W x H | 232 x 69 x 69 mm |
| Pole diameter | min 97 mm |
| Mounting | |
|---|---|
| 50200 | Wing base Ø 108–140 pole, for burial installation |
| 50300 | Steel base, 1 meter, for flange mounting |
| 50301 | Concrete base, for flanged mounting |
| Accessories | |
|---|---|
| 1714-1 | Adapter for Ø60 mm pole |
| 50201 | Top closing for Ø60 mm pole, grey or black |
| 50206 | Top closing for Ø76 mm pole, grey or black |
