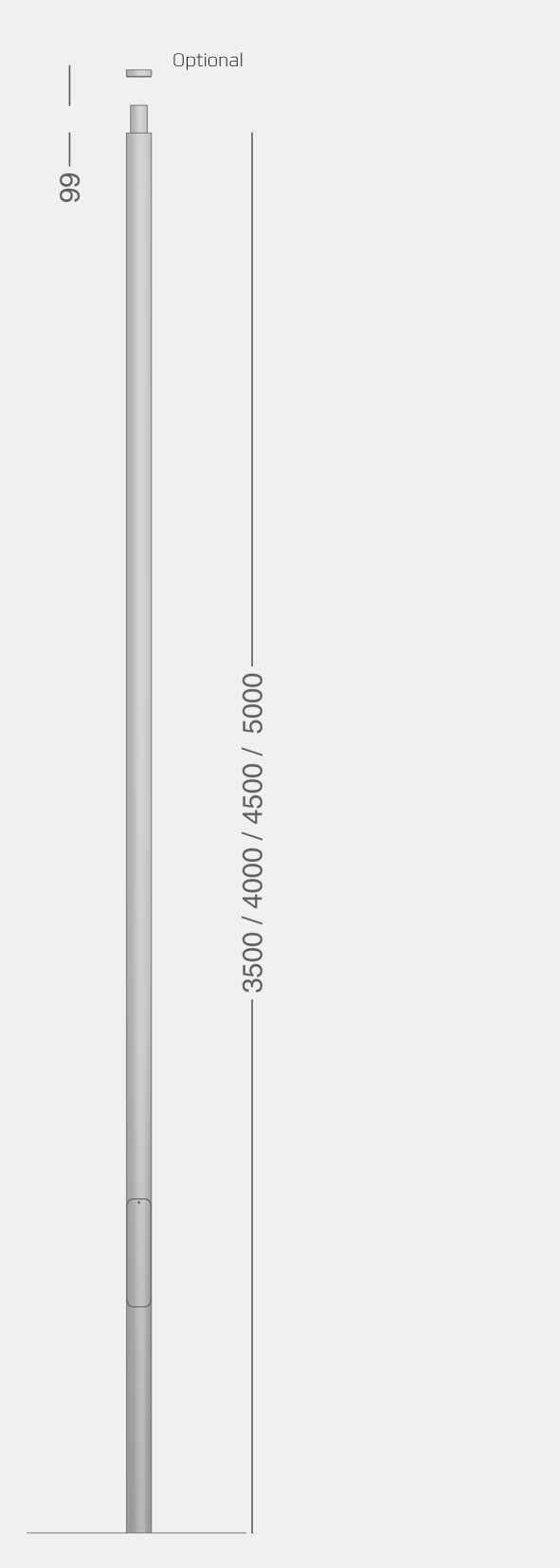

The Ø90 mm pole for Space is available in five heights from 3 to 5 meters. A spacer ring is not required.
| Ø90 mm cylindrical pole with Ø60 spigot, H 99 mm | |
|---|---|
| Materials | Galvanized steel |
| Standard colors | Graphite grey: YW355F, Akzo Nobel |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black noir 900: SN351F, Akzo Nobel | |
| Weight | kg |
| 50279 | HSW fuse box for 1 Neozed fuse up to 16 A |
|---|---|
| Classification | IP55, class II |
| Entry cables | max 2 pcs 5 x 6 mm2 |
| Dimensions L x W x H | 160 x 58 x 57 mm |
| Pole diameter | min 81 mm |
| 6949 | Euro Mini fuse box or 1 fuse |
|---|---|
| Classification | IP44, class II, use code for class I |
| Entry cables | max 2 pcs 4 x 16 mm2 or 3 pcs 4 x 10 mm2 |
| Dimensiones L x W x H | 280 x 52 x 51 mm |
| Pole diameter | min 70 mm |
| Mounting | |
|---|---|
| 50202 | Wing base Ø62–90, for burial installation |
| 50300 | Steel base, 1 m, for flange mounting |
| 50301 | Concrete base, for flange mounting |
| Connection ring – optional | |
|---|---|
| 8016- | Connection ring for Ø90 mm pole, combine with color code |
