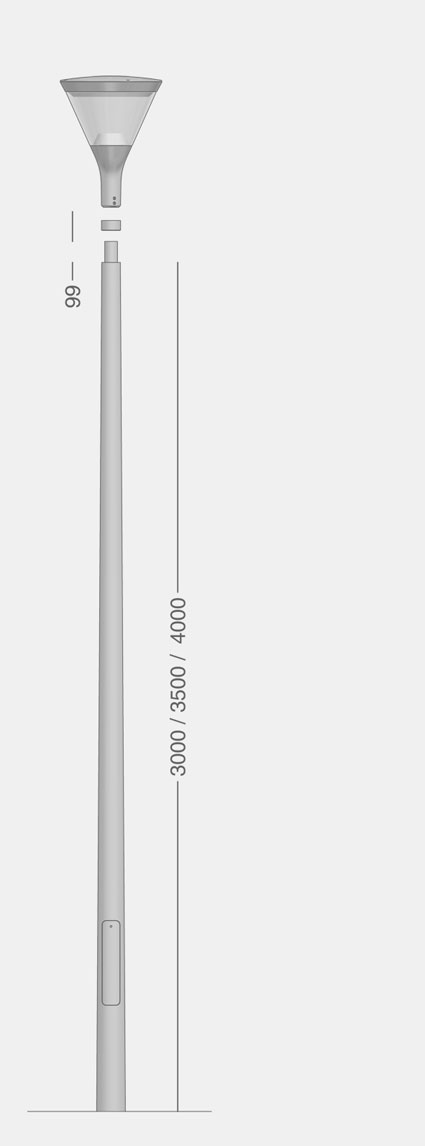

The conical design pole has a top diameter of 88 mm. It is available in three heights: 3, 3.5, and 4 meters. A spacer ring is required to cover the transition between the luminaire and the pole.
| Conical pole with Ø60 spigot, H 99 mm | |
|---|---|
| Materials | Galvanized steel |
| Standard colors | Graphite grey: YW355F, Akzo Nobel |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black noir 900: SN351F, Akzo Nobel |
| 98158 | Fuse box for 2 Neozed fuses up to 16 A |
|---|---|
| Classification | IP44, class II class I |
| Entry cables | max 3 pcs 5 x 16 mm2 |
| Dimensions L x W x H | 232 x 69 x 69 mm |
| Pole diameter | min 97 mm |
| 50271 | Fuse box for 3 Neozed fuses up to 16 A |
|---|---|
| Classification | IP54, class II or class I (see HSW data below) |
| Entry cables | max 3 pcs 5 x 16 mm2 |
| Dimensions L x W x H | 265 x 72 x 84 mm |
| Pole diameter | min 104 mm |
| Mounting | |
|---|---|
| 50200 | Wing foundation Ø108–140 mm pole, for burial installation |
| For 3-meter conical pole, base Ø136 mm | |
| 50208 | Wing foundation Ø141–200 mm pole, for burial installation |
| Til 3½ og 4 meter mast, bund Ø 142 og 148 mm | |
| 50300 | Steel base, 1 m, for flange mounting |
| 50301 | Concrete base, for flange mounting |
| Important: Connection ring | |
|---|---|
| 8005- | Connection ring for Ø88 mm pole, combine with color code |
