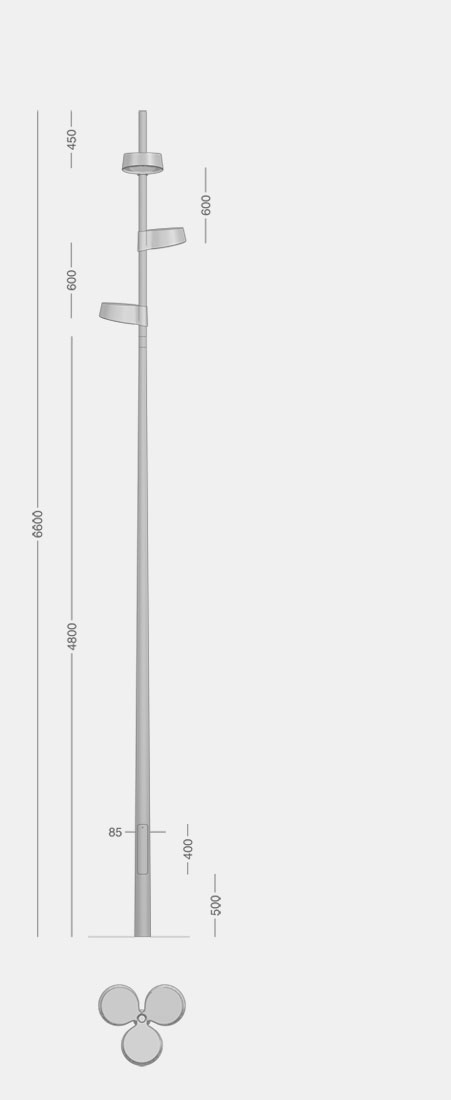

Nyx pole for three mid-column mounting luminaires is available in two heights:
6.6 meters (4.8-meter conical + 1.8-meter cylindrical Ø60 mm)

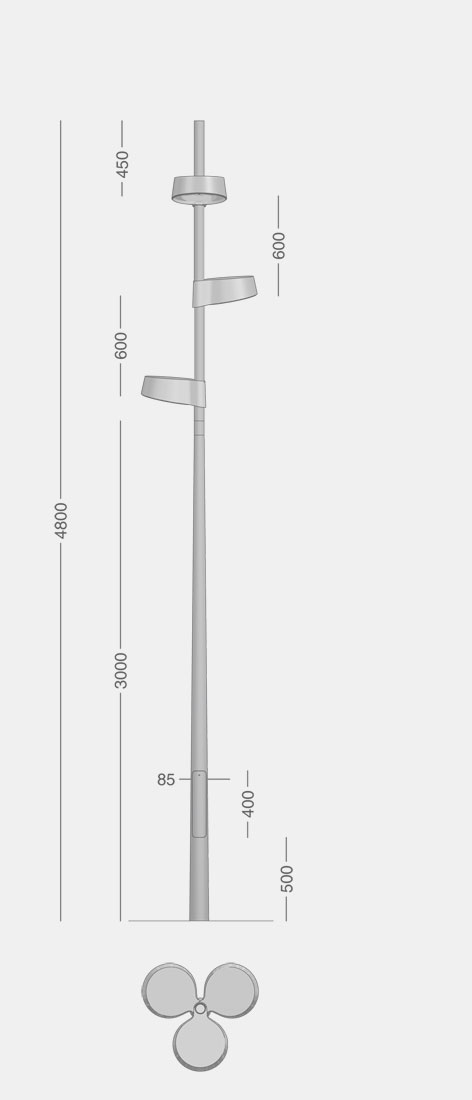

4.8 meters (3-meter conical + 1.8-meter cylindrical Ø60 mm)
| MULTIPLE NYX POLE | 4.8 m conical + 1.8 m cylindrical Ø60 mm, finished with a cap |
|---|---|
| Material | Gavanized steel |
| Standard colors | Graphite gret: YW355F, Akzo Nobel |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black noir 900: SN351F, Akzo Nobel |
| 98158 | Fuse insert for 2 Neozed fuses up to 16 A |
|---|---|
| Classificarion | IP44, class II or class I |
| Input cables | max 3 pcs 5 x 16 mm² |
| Dimensions L x W x H | 232 x 69 x 69 mm |
| Pole diamter | min 97 mm |
| 50271 | Fuse insert for 3 Neozed fuses up to 16 A |
|---|---|
| Classification | IP54, class II or class I (see HSW data below |
| Input cables | max 3 pcs 5 x 16 mm2 |
| Dimensions L x W x H | 265 x 72 x 84 mm |
| Poles diameter | min 104 mm |
| Foundation | |
|---|---|
| 50200 | Wing foundation Ø108–140 mm, for burial installation |
| 50300 | Steel foundation, 1 meter, for flange mounting |
| 50301 | Concrete foundation, for flange mounting |
| Diverse | |
|---|---|
| 50201 | Prop til Ø60 mm mast, grå |
| 50205 | Prop til Ø60 mm mast, sort |
