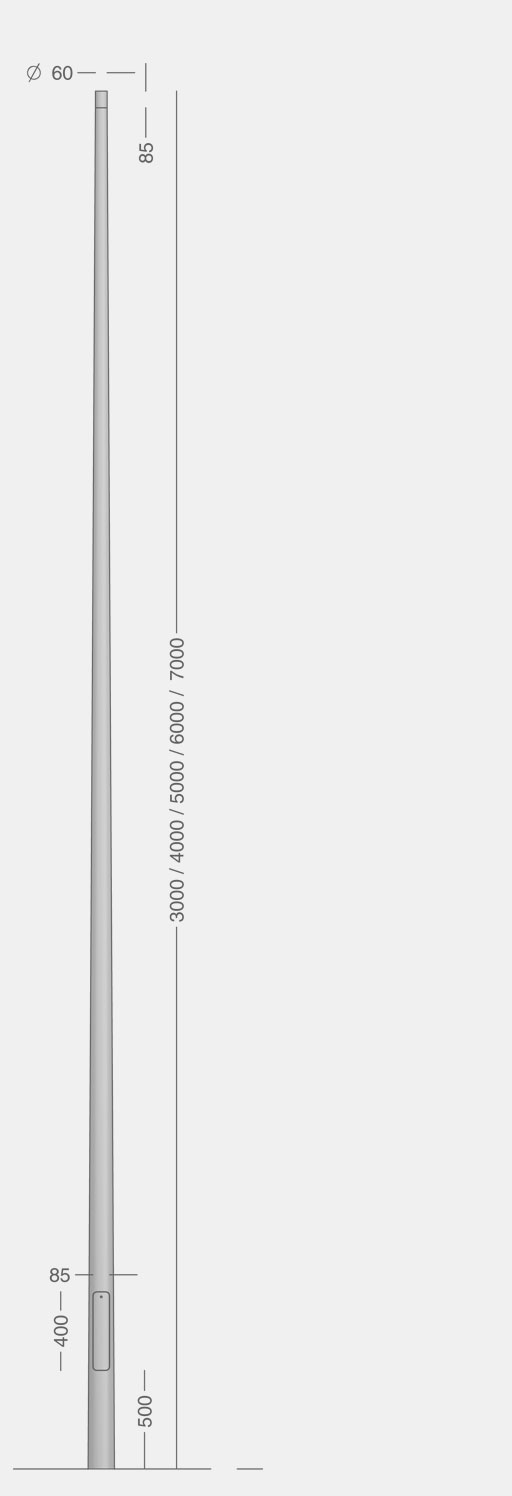

Conical standard poles with Ø60 mm top are shown from 3 to 7 meters.
| Conical pole with Ø60 spigot, H 85 mm | |
|---|---|
| Materials | Galvanized steel |
| Standard colors | Graphite grey YW355F, Akzo Nobel |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black noir 900: SN351F, Akzo Nobel | |
| Weight | kg |
| 98158 | Fuse box for 2 Neozed fuses up to 16 A |
|---|---|
| Classification | IP44, class II or class I |
| Entry cables | max 3 pcs 5 x 16 mm2 |
| Dimensions L x W x H | 232 x 69 x 69 mm |
| Pole diameter | min 97 mm |
| 50271 | Fuse box for 3 Neozed fuses up to 16 A |
|---|---|
| Classification | IP54, class II or class I (see HSW data below) |
| Entry cables | max 3 pcs 5 x 16 mm2 |
| Dimensions L x W x H | 265 x 72 x 84 mm |
| Pole diameter | min 104 mm |
| Mounting | |
|---|---|
| 50200 | Wing base Ø108–140 mm |
| 50208 | Wing base Ø 141-200 mm |
| 50300 | Steel base 1 m |
| 50301 | Concrete base |
