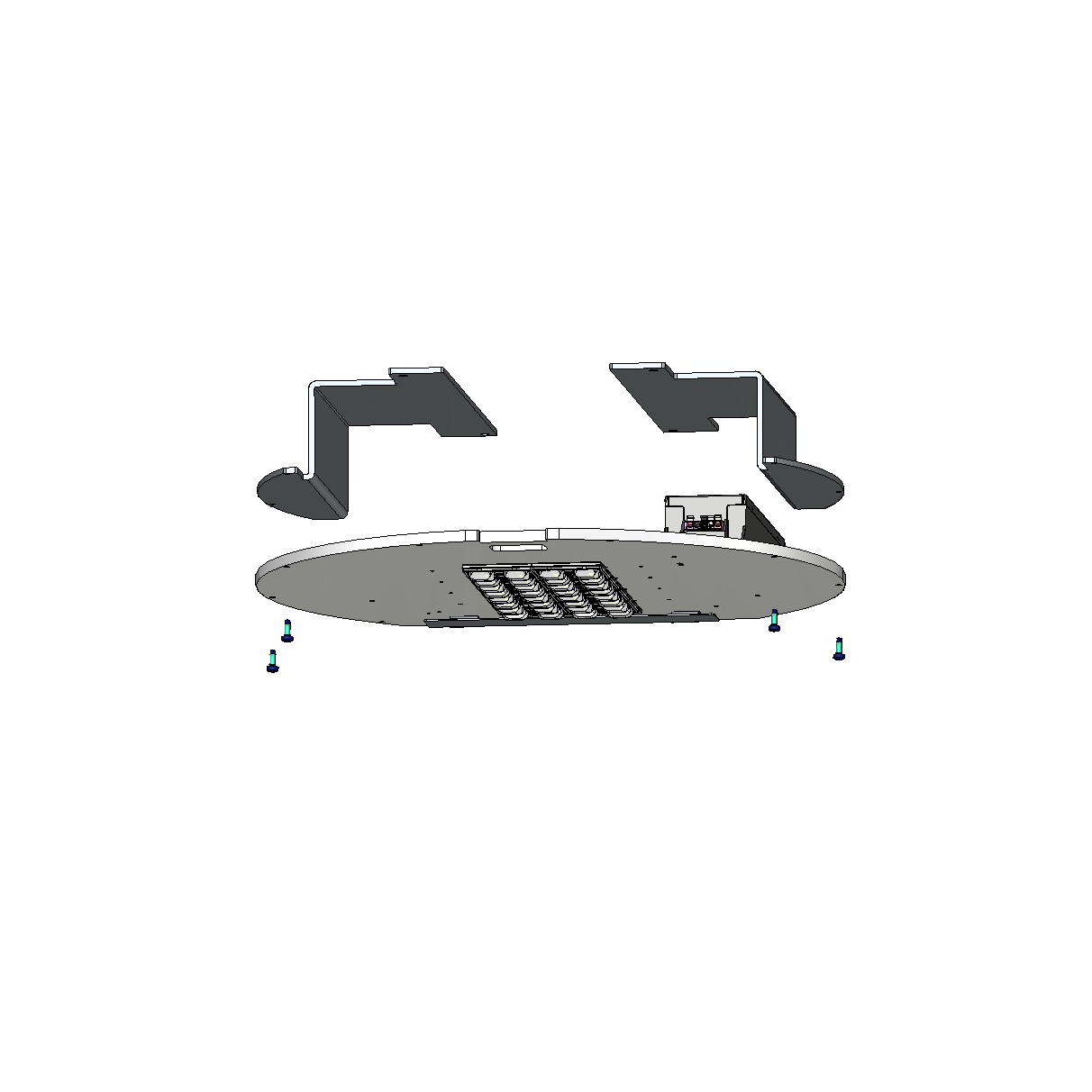

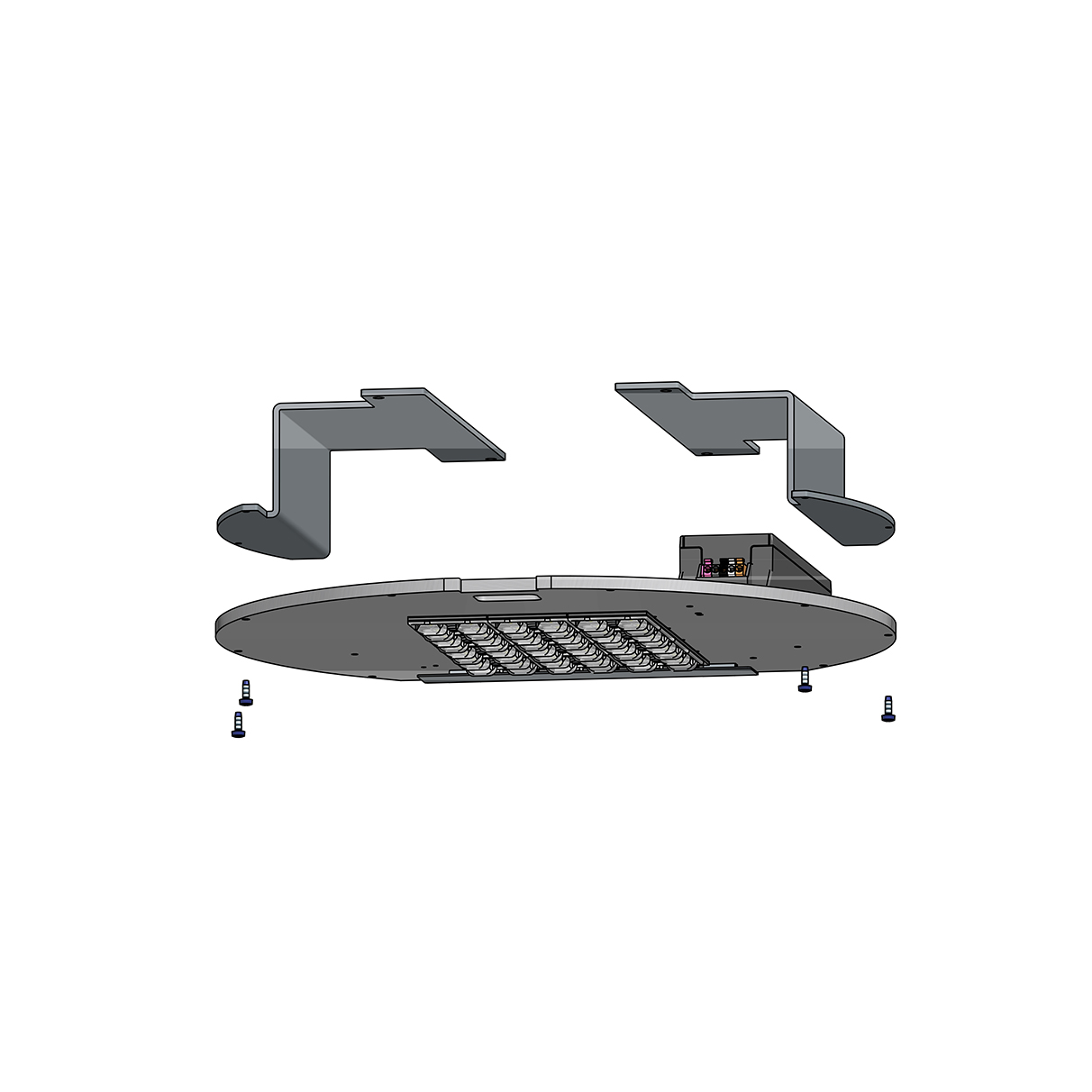

Komplet LED modul med/uden monteringsbeslag til nem og energieffektiv opgradering af eksisterende Nyx 450 armaturer.
Fås i alle standardvarianter. Nedenfor specificeres 2 og 3 x FF-DA med T3, T4 og MEW linser.
Spørg os gerne om andre varianter.
| LED with lenses | 2 x FF-DA with lenses |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Temperature range | -30 til +35° C |
| Colour temperature | View configurator |
| Colour rendering | View configurator |
| Colour accuracy | 5 steps SDCM |
| Driver 2xFF | Xitanium Full Xi FP 75 W 0,2-0,7 A, programable |
|---|---|
| Inrush current | max 46 A (50% efter 250 µs) |
| Nominal voltage, AC | 220-240 Vac |
| Operational voltage, AC | 150-264 Vac |
| Nominal voltage, DC | 186-250 Vdc |
| Operational voltage, DC | 165-275 Vdc |
| Nominal frequency | 50-60 Hz |
| Operational frequency | 45-66 Hz |
| Max protection | 16 A |
| Surge protection | L/N-GND: 10 kV, (SR driver: 8 kV) |
| L-N: 6 kV | |
| Operational life | min 100.000 timer |
| Dimming/control | 5 steps dimming within the lumen intervals |
| Other control options | DALI-2, LineSwitch or |
| via Zhaga book 18 socket downwards |
