SQUARE

Please choose

Created for outdoor spaces, the chaste design and simple materials are as inspirational inside as out. For halls and hallways. Alone or together, in rows or perfect squares.

Simplicity liberates imagination.

Specifications

250 exterior

square250_skitse

Luminaire

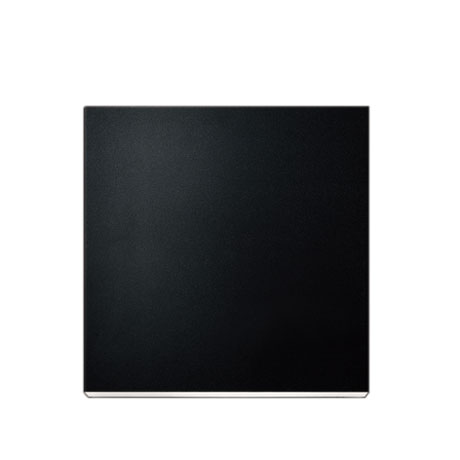

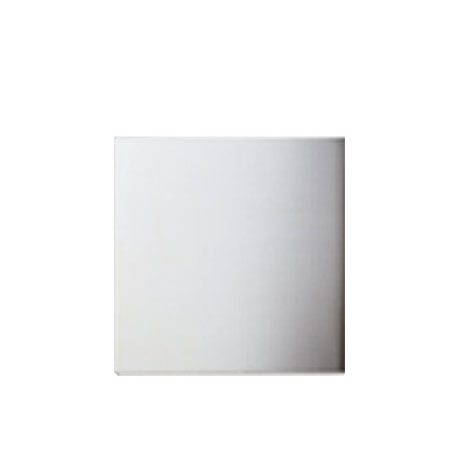

SQUARE 250
Material Galvanised or coated steel, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: YW355F
Corten brown: YX355F
Shade Opal-white polycarbonate

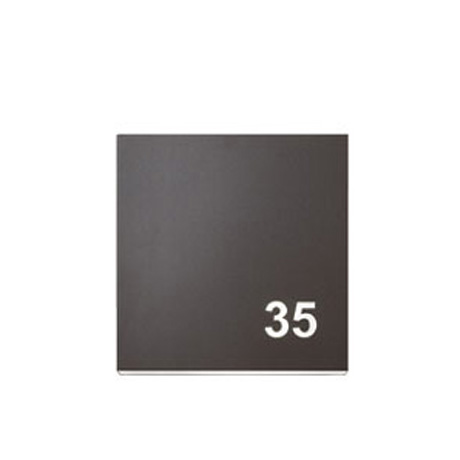

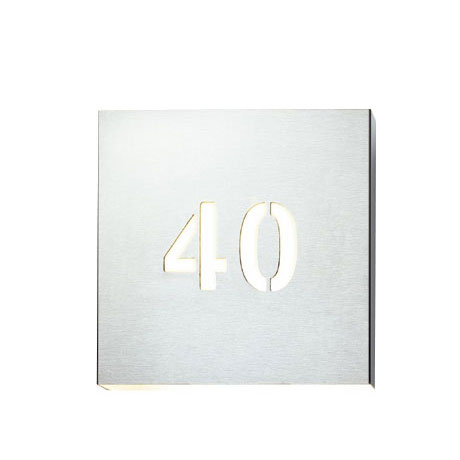

Cut-out Digits can be cut in the front. See specification in the pdf with product data.
Mounting On wall or wall box
Connection Max two cables into 5 x 2.5 mm2 terminal block
Classification IP45, class I or II
Impact resistance IK09
Weight 2 kg


LED and driver data

LED type Bridgelux Vero 10 + V6
Operational life min 100,000 hours at ta max 25° C, L90B10
Total consumption 10 or 15 W
Total consumption, downwards 8 or 12 W
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 63%

Driver LED driver, 20 W
Dimming optional
Inrush current max 5 A (50% after 50 µs)
Operational life min 100,000 hours
Alternative Driver and sensor (radar) for wireless control

Variants



Item No. Square 250 exterior
6828- 10 W LED, 250 mA
6820- 15 W LED, 350 mA
6829- 8 W LED, 250 mA, downwards only
6826- 12 W LED, 350 mA, downwards only




Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
1 = white 927 = 2700 K, 90 Ra
3 = black 930 = 3000 K, 90 Ra
4 = graphite grey 940 = 4000 K, 90 Ra
8 = brushed copper
9 = galvanised
17 = corten brown
66 = noir 900

Dimming Classification
empty = no dimming empty = class I
V = 1-10 V K = class II
D = DALI
R = bluetooth sensor

Laser cutting in front
C = Cutting of digits in front


Example Item No.: 6820-66927D = Square 250, 15 W LED, noir 900, 2700 K, 90 Ra, Dali, class I

square250_skitse

Luminaire

SQUARE 250
Material Galvanised or coated steel, or copper
Coating White: RAL 9010
Black: RAL 9005
Black: Noir 900 Sablé, SN351F
Graphite grey: YW355F
Corten brown: YX355F
Shade Opal-white polycarbonate
Cut-out Digits can be cut in the front. See specification in the pdf with product data.
Mounting On wall or wall box
Connection Max two cables into 5 x 2.5 mm2 terminal block
Classification IP45, class I or II
Impact resistance IK07
Weight 2 kg


Lamp type

E27 max 30 W
Example: Deco Aurora LED dimmable, 7.5 W, 2700 K, 20,000 hours operation
Output ratio 20%


Variants and options



Item No. Square 250 exterior
6002- max 30 W, E27
6006- max 30 W, E27, downwards only

Options
1100-6 E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation



Combine with

Select colour in table below.

Colour Protection class
1 = white empty = class I
3 = black K = class II
4 = graphite grey
8 = brushed copper
9 = galvanised
17 = corten brown
66 = noir 900

Laser cutting in front
C = Cutting of digits in front



Example Item No.: 6002-1 = Square 250, E27, white, class I

Media & downloads

square250_christiansgd_1166

Square 250 black - Christiansgade, Aarhus

square_sportsacademy_1009072_1166

Square 250, grey, Sports Academy Denmark, Odense, Photo: Helene Høyer Mikkelsen

sq250_ladegd_1166_3

Square 250 graphite grey - Ladegaard College, Aarhus

More photos here
square250_sort_odder_1166

Square 250 black - Odder Residential Association

More Square here
squarestd_sort_odder_1166

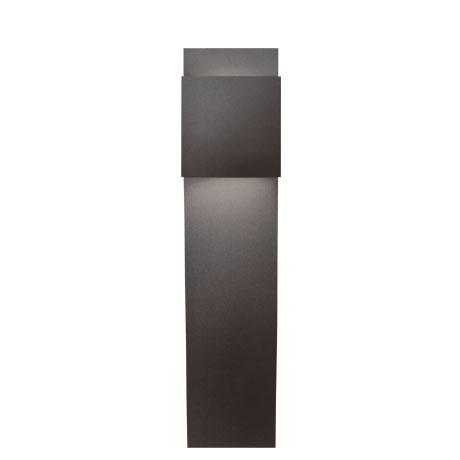

Square Bollard + Square 250 black, Odder

squarestd_galv_vedbk_1166

Square Bollard galvanised - private house at Vedbæk

fyrkildevej_9325_1166

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

fyrkildevej_9342_1166

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

square_8285_close_1166

Square in black noir 900 at black wood. Cubo summer cottage near Aarhus.

More photos
square_8263_1166

Elegant black versions of Square and Pelée are used in two summer cottages by Cubo Architects.

More photos
square_nyborg_21586_1166

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

square_nyborg_21589_1166

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

Designschmidt hammer lassen design

Square - and Sticks - are designed in 1999, and both designs have pathed the way within their fields of application.

The simple, minimalist design enhances the form, and the light is not dominant.
