SKY WALL

Sky Wall has the same dimensions and lighting technology as the Sky Park and is available in the same colours.

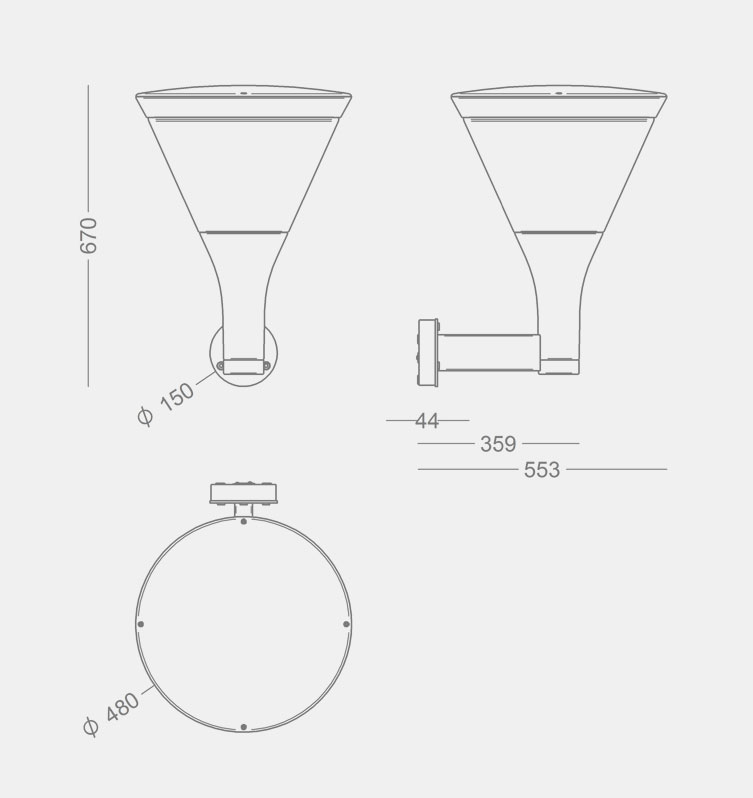

Specifications

SKY WALL

Luminaire

SKY WALL
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen	Clear polycarbonate with UV-resistant acrylate on both sides
Mounting	On wall
Connection	5 x 2.5 mm2 into terminal block
Classification	IP66, class II; use code for class I
Corrosion class	C4, C5 optional
Weight	8.4 kg
Wind-sweeping area	0.143 m2 (laterally)

LED

LED type	Bridgelux Vero 18
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead times for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 315-3450 lm
	3000K: 335-3650 lm
	4000K: 345-3800 lm
LED-lumen, 90 Ra	3000K: 275-3000 lm
Output ratio	74%

Driver

Driver	Xitanium Full Xi FP 22 W 0.2-0.7 A, programmable
Inrush current	max 15 A (50% after 295 µs)
Nominal voltage, AC	220-240 Vac
Operational input voltage, AC	80-264 Vac
Nominal voltage, DC	186-250 Vdc
Operational input voltage, DC	168-275 Vdc
Nominal input frequency	50-60 Hz
Operational input frequency	45-66 Hz
Max preprotection	16 A
Surge protection	L/N-GND: 10 kV
	L-N: 6 kV
Service life	min 100,000 hours
Dimming	5 steps dimming within the lumen intervals
Other dimming	DALI-2, LineSwitch

Variants and options

Item No.	SKY WALL
6834-	V18, Low lumen, programmable, max 24 W

Option
8006-	Powder-coated shade for asymmetrical light

Combine with

Select colour, colour codes, and dimming in the table.

Colour	Colour temperature
01 = raw anodized	827 = 2700 K, 80 Ra
4 = graphite grey	830 = 3000 K, 80 Ra
9 = silver grey	840 = 4000 K, 80 Ra
17 = corten brown	930 = 3000 K, 90 Ra
66 = noir 900

Dimming	Protection class
empty = programmable	empty = class II
D = DALI-2 (4/5-conductor cable)	J = class I
F = LineSwitch

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example: 6834-9827J = Sky Wall, Low lumen, programmable, silver grey, 2700 K, 80 Ra, class I
